CNC Water Jet – 60″ X 98″, 3 Axis With Direct Drive Pump – Baileigh
Original price was: $367.00.$96.99Current price is: $96.99.
- Peace of Mind with Every Purchase
- There are quality problems, free return and exchange
- Shop with Ease
- The quality solution for all your needs.

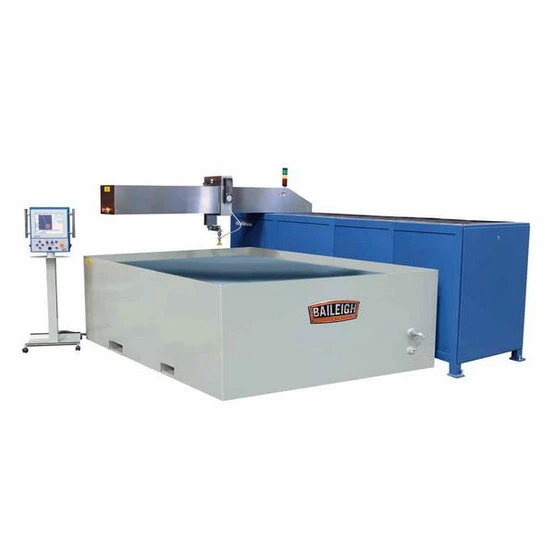

- The WJ-85CNC water jet from Baileigh Industrial offers excellent work table accessibility on a machine built for the rigors of waterjet cutting.
- The cutting table and framework of the WJ-85CNC is laser cut and interlocked, then welded for strength and rigidity to ensure accuracy during the cutting process.
- The design is a cantilever design that allows for much easier material loading and unloading.
- This CNC water jet cutting machine also offers smoother action on the axis with exclusion of moving parts.
- All axis ride on precision balls screws with square slide ways.
- All slide ways are covered and protected from water for long life.
- Because of the smooth action of the gantry, this water jet has the ability to cut just about any material with precision.
- This includes glass, granite, ceramic, plastic, foam, mild steel, stainless steel, titanium, aluminum, and copper in its 60″ x 96″ table.

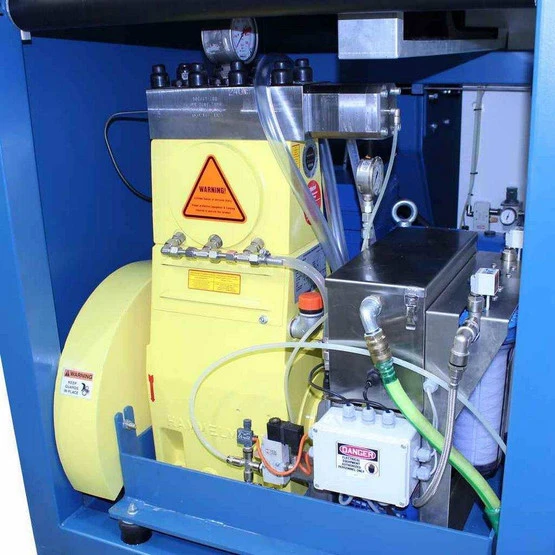

- To help keep maintenance to a minimum, Every WJ-85CNC includes our own proprietary abrasive auto feed system that is coupled with a 55,000psi Hammelmann direct drive pump .

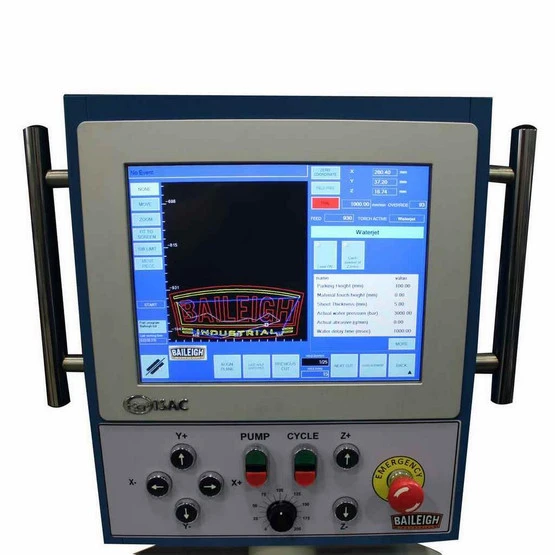

- This system is unique to the Baileigh Industrial line and offers a low maintenance approach to water jet cutting. Controlling the WJ-85CNC water jet Baileigh Industrial could not be easier. The water jet saw includes an easy to use windows based stand alone operator console. This programmer will support DXF.
- Country of Manufacture: Malta
- Motor KW: 30kw
- Working Table Size: 96″ x 60″
- Working Table Travel (X/Y): 96″/60″
- Table Size: 102″ x 63″

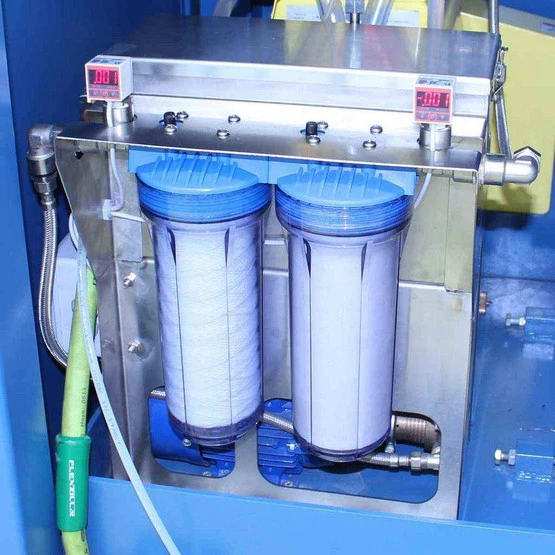

- Filter Type: 2 Stage/2 Filter, 10 Micron & 1 Micron
- Number of Filters: 2
- Supported File Formats: DXF
- Repeatability Accuracy: .001″
- Production Pressure: 56,000 psi
- Max. Pump Pressure Outflow: 7.92 gallons per minute
- Orifice Size: .014″
- Travel Speed: 40 fpm (26 fpm Cutting) Maximum
- CNC System: Windows Based
- Cutting Accuracy: .001″
- Inlet Pressure: 30 psi
- Motor: 40 hp
- X Axis Travel: 98″
- Y Axis Travel: 59″
- Z Axis Travel: 6.75″
- Power: 460V / 3-phase 60amp
- Shipping Weight: 6000 lbs

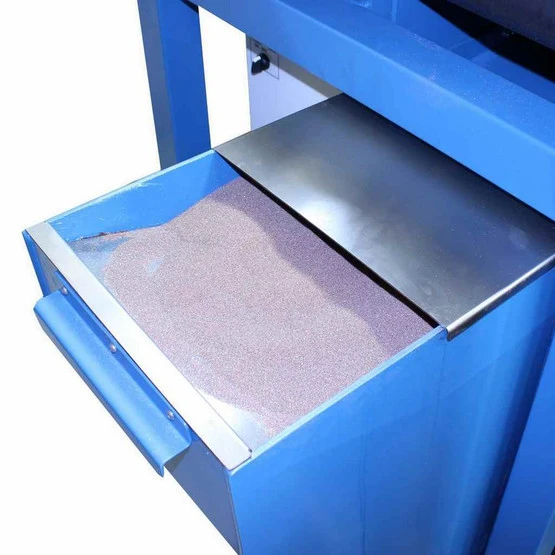

- Hopper Capacity: 250 lbs
- Software: BobCad Cam
