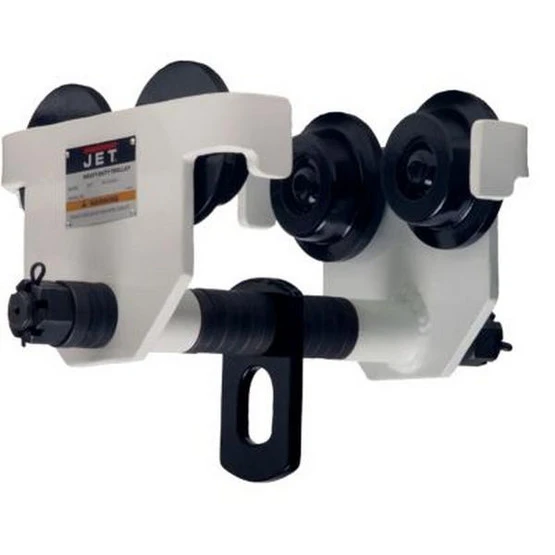

Jet 252050 5-pt, 5-ton Heavy Duty Manual Trolley

• Durability
• Welded heavy gauge steel frame and powder coat finish provide maximum durability and protection
• Hardened large steel wheels and thicker double sealed lubricated ball bearings provide smooth movement
• Built-in bumper guards on the side plates increase safety and extend trolley life
• Easily adjustable to wide-flange H-beams, standard I-beams or curved track with the included spacer washers
• Standards
• Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards
• Certification- Load tested to 125% of capacity with certificate

JET PT Series heavy duty manual trolleys are available in capacities from 1/2 ton to 10 Tons. Built with heavy gauge steel for increased durability, the large steel wheels and thicker bearings provide smooth movement on a variety of beams. The built in bumper guards increase user safety and extend the life of the trolley. Each JET Manual Trolley conforms to OSHA regulations, and ANSI / ASME standards

• Load Capacity (Tons): 5
• Minimum Beam Flange Width (In.): 4-5/8 – 8
• Minimum Beam Heighth (In.): 5
• Minimum Beam Curve Radius (In.): 55
• Height: 12.0000
• Length: 17.0000
• Weight: 124.0000
• Width: 8.0000
