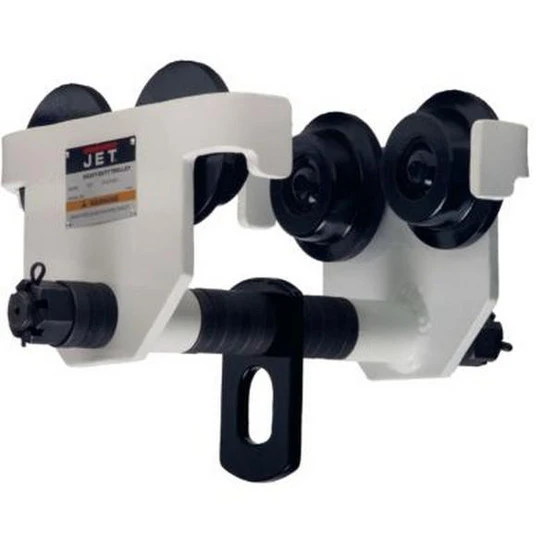

Jet 262030 3-hdt, 3-ton Manual Trolley

• Durability
• Welded all-steel frame and powder coat finish provide maximum durability and protection
• Built-in bumper guards on the side plates increase safety and extend trolley life
• Hardened steel wheels and double sealed lubricated ball bearings provide smooth movement
• Easily adjustable to wide-flange H-beams, standard I-beams or curved track with the included spacer washers
• Standards
• Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards
• Certification- Load tested to 125% of capacity with certificate

JET HDT Series manual trolleys are available in capacities from 1/2 ton to 5 Tons. They are designed for low maintenance, trouble free use on wide flange H-beams, standard I-beams or curved track. Each JET Manual Trolley conforms to OSHA regulations, and ANSI / ASME standards

• Load Capacity (Tons): 3
• Minimum Beam Flange Width (In.): 4 – 8
• Minimum Beam Heighth (In.): 8
• Minimum Beam Curve Radius (In.): 51
• Height: 10.0000
• Length: 14.7500
• Weight: 53.0000
• Width: 6.5000
