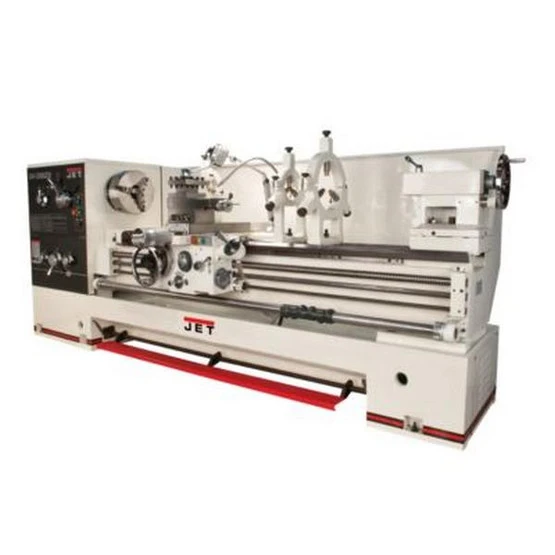

Jet 321891 Gh-26120zh With Newall Dp700 Dro

• 4-1/8″ Spindle Bore
• Clutch operated headstock with all headstock gears hardened and ground
• Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required
• Meehanite Castings are used for added durability.
• Bed ways are induction hardened and ground for durability.
• Full Length Splash Guard
• Heavy-duty tailstock and quill
• Rapid power traverse to cross slide and carriage
• Siemens Electrics
• Standard Equipment:
• Drive Plate
• 12″ 3-Jaw scroll chuck with top reversing jaws
• Face Plate
• 2 Steady Rests with Roller Bearings
• Follow Rest
• Large capacity steady rest with ball bearing tips
• 5pc. Quick change tool post set
• Micro-carriage bed stop
• Fully Integrated Coolant System
• LED work lamp
• Electronic Chuck Key Holder
• Fitted top mats to hold tooling
• E-Stop on Carriage for added safety
• Large easy to use foot brake

The JET ZH-Series 4-1/8 spindle bore lathes feature a clutch operated headstock, universal gearbox, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. Features you’ve come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty

• Size: 26 x 120
• Digital Readout: Newall DP700
• Swing Over Bed (In.): 26
• Swing Over Cross Slide (In.): 16-1/2
• Swing Through Gap (In.): 34
• Length of Gap (In.): 8
• Distance Between Centers (In.): 120
• Spindle Bore (In.): 4-1/8
• Spindle Mount: D1-8
• Spindle Taper with Sleeve: MT-5
• Number of Spindle Speeds: 12
• Range of Spindle Speeds (RPM): 36 – 1,600
• Number of Longitudinal and Cross Feed Rates: 65
• Range of Longitudinal Feeds (IPR): .0023 – .0937
• Range of Cross Feeds (IPR): .0040 – .0404
• Number of Inch Threads: 48
• Range of Inch Threads (TPI): 2-30
• Number of Metric Threads: 22
• Range of Metric Threads: 1 – 14
• Max Tool Size (In.): 1-1/4 x 1-1/4
• Compound Slide Travel (In.): 5-1/2
• Cross Slide Travel (In.): 12-3/32
• Carriage Travel (In.): 108-1/4
• Tailstock Spindle Travel (In.): 6
• Taper in Tailstock Spindle: MT-5
• Follow Rest Capacity (In.): 25/32 – 3-15/16
• Steady Rest Capacity (In.): Small 25/32 – 4-29/32, Large 3-15/16 – 9-7/16
• Width of Bed (In.): 16
• Motor (HP): 10 HP, 230/460, 3 Ph
• Prewired (V.): 230
• Weight (Lbs.): 9,362
• Overall Dimensions (L x W x H) (In.): 178 x 43 x 57
• Height: 57.0000
• Length: 177.0000
• Weight: 9362.0000
• Width: 43.0000
