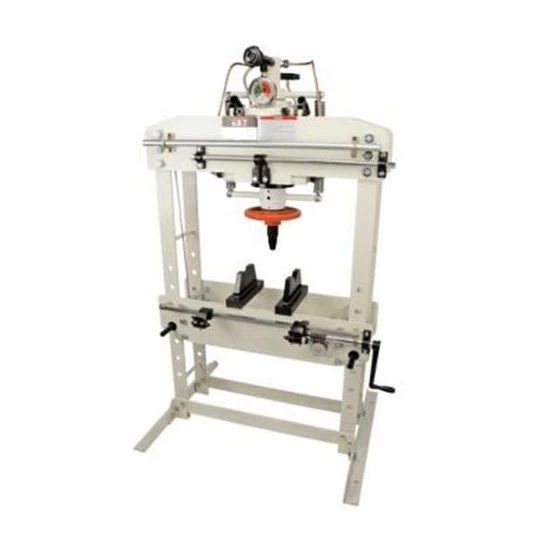

Jet 331416 Hp-15a, 15-ton Hydraulic Press

• *HP-15A Shown in Image
• For pressing, bending and straightening operations
• Easy-to-use, hand-operated with pressure gauge for direct pressure readings
• Tables raise and lower easily with use of hand crank on the 15- and 35- ton models
• Side frames are open for inserting long material
• Fast setup ram extension screw
• Ram moves laterally for added versatility (15- and 35-ton models)
• Two bed plates and pump handles
• Straightness testing support uses centers or v-blocks on the 15 and 35 Ton models

JETs Hydraulic Shop Press line consists of a 5, 15 and 35 ton hydraulically powered H frame press. Each machine is built using heavy steel plate that is electro welded together, and comes standard with industrial grade hydraulics. These machines are for the serious fabrication and machine shop owner who demands only the best quality from his operation.

• Capacity (Tons): 15
• Ram Diameter (In.): 2-1/2
• Piston Stroke (In.): 4-1/2
• Screw Stroke (In.): 3-1/8
• Work Table Size (In.): 24-3/4 x 7-1/2
• Lateral Movement (In.): 10-3/16
• Vertical Table Travel (In.): 22-3/16
• Overall Dimensions (L x W xH) (In.): 34 x 30 x 66
• Weight (Lbs.): 435
• Height: 17.5000
• Length: 69.0000
• Weight: 435.0000
• Width: 35.5000
