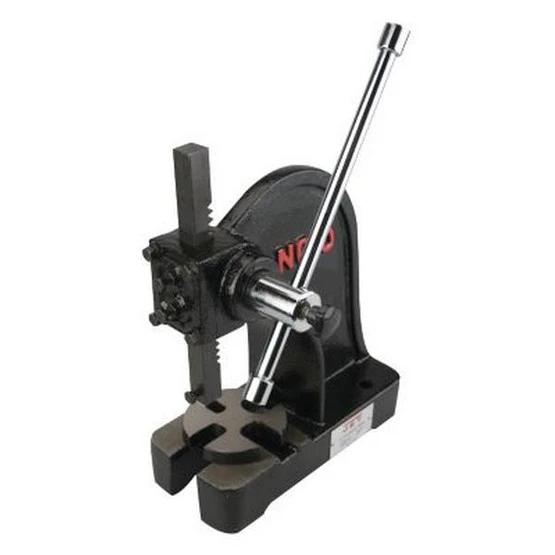

Jet 333630 Ap3-m, 3-ton Arbor Press

• ARBOR PRESSES
• For all production and assembly applications
• Precision cut steel rams and pinions for accurate operation
• Tables and slotted table-plates are flat and parallel to provide accurate support

Every JET arbor press is made of a heavy ductile iron casting that offers incredible strength and rigidity to the overall framework. The base, ram housing, framework and 4 position bottom plate are precision machined for unquestioned accuracy.

• Capacity (Tons): 3
• Overall Dimensions (L x W xH) (In.): 18-1/8 x 10-1/4 x 22-1/2
• Weight (Lbs.): 108
• Capacity Over Table (In.): 11-1/2
• Anvil Diameter (In.): 6-11/16
• Diameter of Work (In.): 11-3/8
• Arbor Press Height (In.): 18-1/8
• Base Size (In.): 8-1/2 x 18
• Ram Bore (In.): 1/2
• Travel of Ram (In.): 12-3/5
• Approx. Pressure (Tons): 3
• Height: 12.0000
• Length: 20.0000
• Weight: 97.0000
• Width: 24.0000
