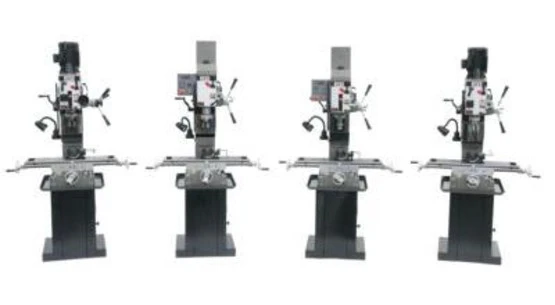

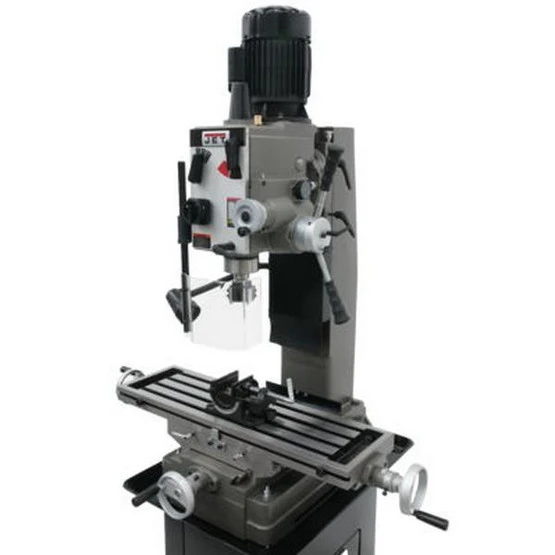

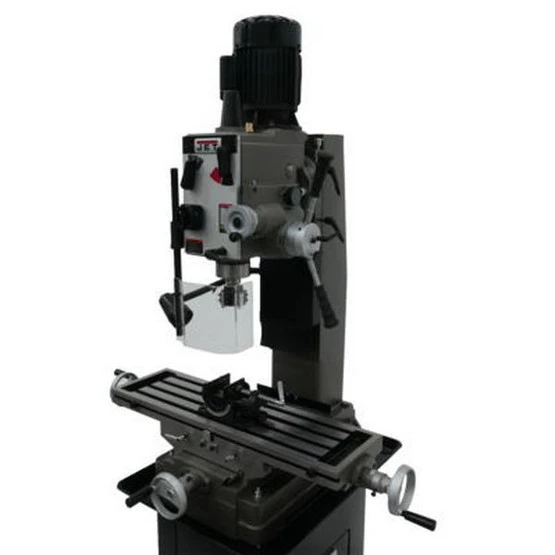

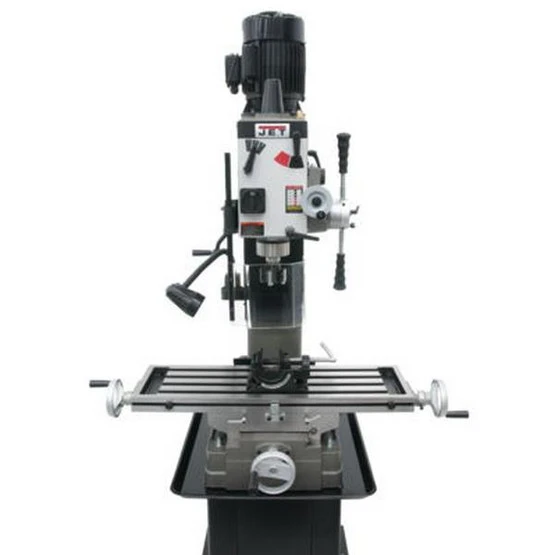

Jet 351050 Jmd-45vspf Variable Speed Square Column Geared Head Mill/drill

• Heavy-duty design allows for a variety of precision drilling applications
• Full power to the cutting tools through Variable Speed geared head
• Square column with dovetail ways
• CSA/CUS: Following strict guidelines and electrical requirements, this JET Mill Drill is CSA/CUS certified
• Spindle guard
• Work Lamp
• Calibrated fine down feed built inCalibrated fine down feed built in
• Easy to read internal depth gauge
• Head tilts left & right 90º
• Rapid spindle speed changes through quick-select gear shift levers
• Forward/reverse switch
• Power Downfeed standard
• Milling table allows for movement
• R8 spindle allows use of all mill tooling

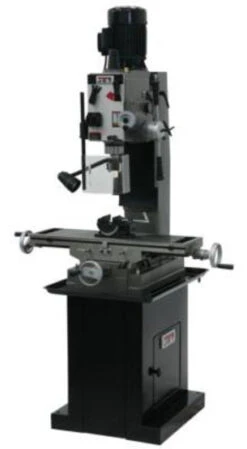

• Mill Drill Stand, p/n 320020, shown in some images, is optional

Engineered to maximize production, the heavy-duty JMD-45VSPF variable speed Square Column Geared Head Mill Drill with power downfeed capability delivers the rigidity needed to perform a variety of precision drilling applications in high intensity environments.

• Drilling Capacity (In.): 1-1/2
• Face Mill Capacity (In.): 4
• End Mill Capacity (In.): 3/4
• Swing (In.): 19-11/16
• Max Distance Spindle to Table (In.): 18-1/8
• Spindle Taper (In. x TPI): R8
• Spindle Travel Auto (In.): 4-1/4
• Quill Diameter (In.): 3
• Column Diameter (In.): 7-7/8 x 7-5/8 Square
• Number of Spindle Speeds: Variable Speed
• Range of Spindle Speeds (RPM): 50-2500
• Table Size (L x W) (In.): 9-1/2 x 32-1/4
• Table Longitudinal Travel (In.): 20-1/2
• Base Dimensions (In.): 26-11/16 x 15-15/16
• Motor (HP): 1-1/2HP, 115/230V, 1Ph
• Overall Dimensions (L x W x H) (In.): 29 x 36 x 50
• Weight (Lbs.): 827
• Height: 60.0000
• Length: 46.8500
• Weight: 827.0000
• Width: 36.4000
