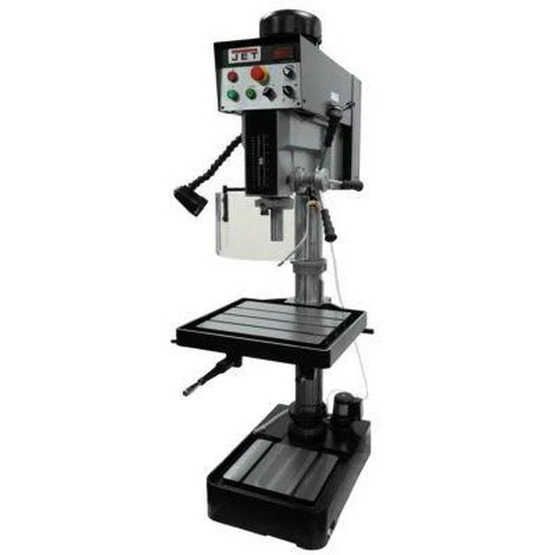

Jet 354225 Jdp-20evst-230, 1-1/2″ Drilling Capacity, 2hp, 230v 3ph With Forward And Reverse Tapping Capability

• Heavy-duty steel column for increased precision and rigidity
• Heavy Duty casted head for more accuracy and rigidity
• Large Precision Ground T-slot Production Table for easy set ups
• Latest AC Inverter Variable Speed Technology
• CSA Coolant System
• Spindle is supported by high quality ball bearings
• CSA/CUS: Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certified
• LED Machine Lamp
• Spindle Guard
• Emergency Stop
• Spindle is supported by high quality ball bearings
• Variable Spindle Speeds from 65 – 2,000 RPM’s
• High Torque at all speeds both forward and reverse
• Continuous Speed Adjustment while in operation
• Front Mounted LED Spindle RPM Readout
• Forward and Reverse for Tapping
• Front Mounted Postitive Control Depth Stop
• Large Hand Grips designed with the Users comfort in mind

JET Electronic Variable Speed Drill Presses offer spindle speed rates between 65 and 2000 RPM for a wide variety of applications. Designed to permit continuous speed adjustment – even during operation. Tapping capability, an emergency stop and a heavy-duty casted head are but a few of the features JET includes to enhance overall use and accuracy.

• Style (Type): Variable Speed
• Drills to Center of Circle (in): 20
• Drilling Capacity Cast Iron (In.): 1-1/2
• Drilling Capacity Mild Steel (In.): 1-3/8
• Tapping Capacity Cast Iron (In.): 7/8
• Tapping Capacity Mild Steel (In.): 3/4
• Distance Column to Spindle (In.): 10-7/16
• Number of Spindle Speeds: Variable
• Range of Spindle Speeds (RPM): 65-540 /245- 2,000
• Column Diameter (In.): 4-1/2
• Spindle Taper (In. x TPI): MT-3
• Spindle Travel (In.): 6
• Spindle Distance to Base (In.): 44-1/2
• Spindle Distance to Table (Max.) (In.): 30-1/4
• Table Size (L x W) (In.): 22×18-3/4
• Table Travel (In.): 20
• T-Slots Number and Size (In.): 3 & 5/8
• T-Slot Centers (In.): 7-7/16
• Work Table Weight Capacity (Lbs.): 154
• Base Dimensions (In.): 27 x 19
• Base Slots Number & Size (In.): 2 & 5/8
• Motor (HP): 2 HP, 230V 3ph
• Overall Dimensions (L x W x H) (In.): 38.18 x27.16 x 79.52
• Weight (Lbs.): 792
• Height: 79.5200
• Length: 38.1800
• Weight: 792.0000
• Width: 27.1600
