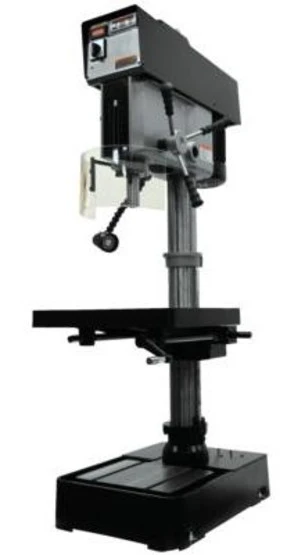

Jet 354231 Jdp-20vs-3, 1-1/2 Drilling Capacity, 2hp, 3 230/460v 3ph

• Steel Column
• Heavy Duty Casted Iron Design
• Head is massively constructed for more accuracy and rigidity
• Large Precision Ground T-slot Production Table for easy set ups
• Massive 3″ Quill Diameter
• CSA/CUS: Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certified
• LED Machine Lamp
• Spindle Guard
• Variable Spindle Speeds from 65 – 2,000 RPM’s
• Front Mounted LED Spindle RPM Readout
• Front Mounted Postitive Control Depth Stop
• Table rotates 360° around the column
• Machine T-Slotted base
• Large Hand Grips designed with the Users comfort in mind
• STANDARD EQUIPEMENT
• Spindle Safety Guard
• LED Machine Lamp

Solid design and construction deliver precision operation and control. JET 20 Variable Speed Drill Presses combine variable speed spindles with a massively constructed head that increases accuracy and rigidity. Thats all on top of a steel column and a heavy-duty cast iron base.

• Style (Type): Variable Speed
• Drills to Center of Circle (in): 20
• Drilling Capacity Cast Iron (In.): 1-1/2
• Drilling Capacity Mild Steel (In.): 1-3/8
• Tapping Capacity Cast Iron (In.): N/A
• Tapping Capacity Mild Steel (In.): N/A
• Distance Column to Spindle (In.): 10 7/16
• Number of Spindle Speeds: Variable
• Range of Spindle Speeds (RPM): 300 – 2,000
• Column Diameter (In.): 4-1/2
• Spindle Taper (In. x TPI): MT-3
• Spindle Travel (In.): 6
• Spindle Distance to Base (In.): 44-1/2
• Spindle Distance to Table (Max.) (In.): 30-1/4
• Table Size (L x W) (In.): 22×18-3/4
• Table Travel (In.): 20
• T-Slots Number and Size (In.): 3 & 5/8
• T-Slot Centers (In.): 7-7/16
• Work Table Weight Capacity (Lbs.): 154
• Base Dimensions (In.): 27 x 19
• Base Slots Number & Size (In.): 2 & 5/8
• Motor (HP): 2HP, 230/ 460V,3ph ,4P
• Overall Dimensions (L x W x H) (In.): 38.18 x27.16 x79.52
• Weight (Lbs.): 780
• Height: 79.5200
• Length: 38.1800
• Weight: 780.0000
• Width: 27.1600
