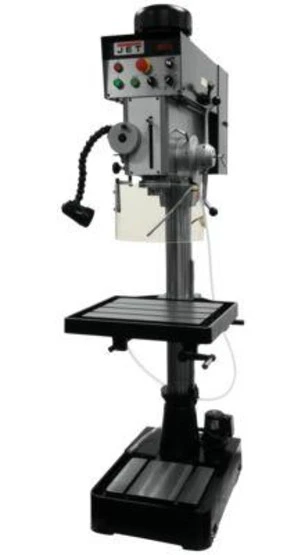

Jet 354245 Jdp20evst-230-pdf , Gh Powerfeed , 2hp, 3ph, 230v

• Heavy-duty steel column for increased precision and rigidity
• Heavy Duty casted head for more accuracy and rigidity
• Large Precision Ground T-slot Production Table for easy set ups
• Latest AC Inverter Variable Speed Technology
• CSA Coolant System
• CSA/CUS: Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certified
• LED Machine Lamp
• Spindle Safety Guard
• Spindle is supported by high quality ball bearings
• Variable Spindle Speeds from 65 – 2,000 RPM’s
• High Torque at all speeds both forward and reverse
• Continuous Speed Adjustment while in operation
• Front Mounted LED Spindle RPM Readout
• Forward and Reverse for Tapping
• Front Mounted Postitive Control Depth Stop
• Large Hand Grips designed with the Users comfort in mind
• STANDARD EQUIPEMENT
• Coolant System
• Spindle Safety Guard
• LED Machine Lamp

Accuracy, stability and versatility are the benchmark features of the JET 20″ Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty.

• Style (Type): Variable Speed
• Drills to Center of Circle (in): 20
• Drilling Capacity Cast Iron (In.): 2 5/32
• Drilling Capacity Mild Steel (In.): 2
• Tapping Capacity Cast Iron (In.): 1
• Tapping Capacity Mild Steel (In.): 1
• Distance Column to Spindle (In.): 10-7/16
• Number of Spindle Speeds: Variable
• Range of Spindle Speeds (RPM): 60 – 2,000(60-540/225-2000)
• Column Diameter (In.): 4-1/2
• Spindle Taper (In. x TPI): MT-4
• Spindle Travel (In.): 6
• Spindle Distance to Base (In.): 44.68 (1135mm)
• Spindle Distance to Table (Max.) (In.): 25.5 (648mm)
• Table Size (L x W) (In.): 22×18-3/4
• Table Travel (In.): 20
• T-Slots Number and Size (In.): 3 & 5/8
• T-Slot Centers (In.): 7-7/16
• Work Table Weight Capacity (Lbs.): 154
• Base Dimensions (In.): 27 x 19
• Base Slots Number & Size (In.): 2 & 5/8
• Motor (HP): 2 HP, 230V 3ph
• Overall Dimensions (L x W x H) (In.): 42.5 x 27.16 x 78.74
• Weight (Lbs.): 847
• Height: 78.7400
• Length: 42.5000
• Weight: 847.0000
• Width: 27.1600
