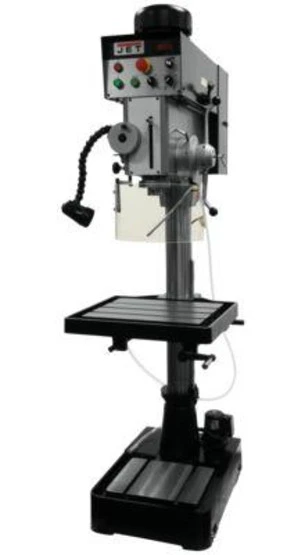

Jet 354246 Jdp-20evst-230-pdf, 2hp, 1ph, 460v, With 3ph Power Down Feed
Original price was: $377.00.$98.99Current price is: $98.99.
- Peace of Mind with Every Purchase
- There are quality problems, free return and exchange
- Shop with Ease
- The quality solution for all your needs.
- Heavy-duty steel column for increased precision and rigidity
- Heavy Duty casted head for more accuracy and rigidity
- Large Precision Ground T-slot Production Table for easy set ups
- Latest AC Inverter Variable Speed Technology
- CSA Coolant System
- CSA/CUS: Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certified
- LED Machine Lamp
- Spindle Safety Guard
- Spindle is supported by high quality ball bearings
- Variable Spindle Speeds from 65 – 2,000 RPM’s
- High Torque at all speeds both forward and reverse
- Continuous Speed Adjustment while in operation
- Front Mounted LED Spindle RPM Readout
- Forward and Reverse for Tapping
- Front Mounted Postitive Control Depth Stop
- Large Hand Grips designed with the Users comfort in mind
- STANDARD EQUIPEMENT
- Coolant System
- Spindle Safety Guard
- LED Machine Lamp
- Style (Type): Variable Speed
- Drills to Center of Circle (in): 20
- Drilling Capacity Cast Iron (In.): 2 5/32
- Drilling Capacity Mild Steel (In.): 2
- Tapping Capacity Cast Iron (In.): 1
- Tapping Capacity Mild Steel (In.): 1
- Distance Column to Spindle (In.): 10-7/16
- Number of Spindle Speeds: Variable
- Range of Spindle Speeds (RPM): 60 – 2,000(60-540/225-2000)
- Column Diameter (In.): 4-1/2
- Spindle Taper (In. x TPI): MT-4
- Spindle Travel (In.): 6
- Spindle Distance to Base (In.): 44.68 (1135mm)
- Spindle Distance to Table (Max.) (In.): 25.5 (648mm)
- Table Size (L x W) (In.): 22×18-3/4
- Table Travel (In.): 20
- T-Slots Number and Size (In.): 3 & 5/8
- T-Slot Centers (In.): 7-7/16
- Work Table Weight Capacity (Lbs.): 154
- Base Dimensions (In.): 27 x 19
- Base Slots Number & Size (In.): 2 & 5/8
- Motor (HP): 2 HP, 460V 3ph
- Overall Dimensions (L x W x H) (In.): 42.5 x 27.16 x 78.74
- Weight (Lbs.): 847
- Height: 78.7400
- Length: 42.5000
- Weight: 847.0000
- Width: 27.1600
