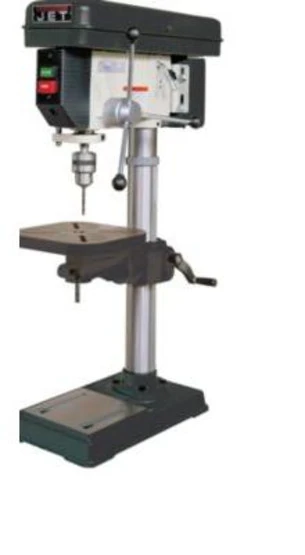

Jet 354401 J-2530, 15″ Bench Model Drill Press 115v 1ph

• Constructed to provide a solid base for drilling
• The enclosed spidle assembly is supported by four permanently lubricated ball bearings for greater precision and accuracy
• Cast Iron head
• Large ground steel column for maximum head and table support
• Large quill allows greater accuracy
• 3-1/8″ stroke for deep hole applications
• Accurate depth stop for precice hole depths
• Table tilts 45°
• 5/8″ drill chuck and arbor
• Telescoping safety spindle guard

Accuracy, stability and versatility are the benchmark features of the JET 15″ and 20″ Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty.

• Style (Type): Belt Drive
• Drills to Center of Circle (in): 15
• Drilling Capacity Cast Iron (In.): 5/8
• Drilling Capacity Mild Steel (In.): 1/2
• Distance Column to Spindle (In.): 7-1/2
• Number of Spindle Speeds: 16
• Range of Spindle Speeds (RPM): 200, 290 ,350, 430, 500, 580, 640, 720, 800, 870, 1,440, 1,630, 1,820, 2,380, 2,540, 3,630
• Column Diameter (In.): 2-7/8
• Spindle Taper (In. x TPI): MT-2
• Spindle Travel (In.): 3-3/8
• Spindle Distance to Base (In.): 24
• Spindle Distance to Table (Max.) (In.): 15
• Table Size (L x W) (In.): 11-1/2 x 11-1/2
• Table Travel (In.): 15-1/2
• T-Slots Number and Size (In.): –
• T-Slot Centers (In.): –
• Work Table Weight Capacity (Lbs.): 44
• Base Dimensions (In.): 18 x 10-1/2
• Base Work Table (In.): 8 x 8
• Base Slots Number & Size (In.): –
• Motor (HP): 3/4 HP, 115/230V, 1Ph
• Overall Dimensions (L x W x H) (In.): 31 x 13 x 39-1/2
• Weight (Lbs.): 157
• Height: 12.0000
• Length: 32.0000
• Weight: 163.0000
• Width: 22.5000
