- Constructed to provide a solid base for drilling
- The enclosed spidle assembly is supported by four permanently lubricated ball bearings for greater precision and accuracy
- Head casting features a permanently lubricated ball bearing spindle assembly, using four heavy duty ball bearings in an encloseCast Iron head d quill for longer life.
- Large quill allows greater accuracy
- Large ground steel column for maximum head and table support
- Large production table tilts 45°
- 4-3/4″ stroke for deep hole applications
- Accurate depth stop for precice hole depths
- 5/8″ drill chuck and arbor
- Telescoping safety spindle guard

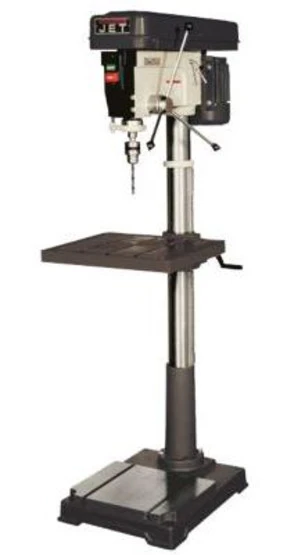

Accuracy, stability and versatility are the benchmark features of the JET 15″ and 20″ Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty.
- Style (Type): Belt Drive
- Drills to Center of Circle (in): 20
- Drilling Capacity Cast Iron (In.): 3/4
- Drilling Capacity Mild Steel (In.): 5/8
- Distance Column to Spindle (In.): 10
- Number of Spindle Speeds: 12
- Range of Spindle Speeds (RPM): 150, 260, 300, 440, 490, 540, 1,150, 1,550, 1,840, 2,220, 2,950, 4,200
- Column Diameter (In.): 3-5/8
- Spindle Taper (In. x TPI): MT-3
- Spindle Travel (In.): 4-3/4
- Spindle Distance to Base (In.): 43-1/2
- Spindle Distance to Table (Max.) (In.): 24
- Table Size (L x W) (In.): 18-11/16 x 16-3/4
- Table Travel (In.): 21-1/2
- T-Slots Number and Size (In.): 3 and 1/2
- T-Slot Centers (In.): 4
- Work Table Weight Capacity (Lbs.): 66
- Base Dimensions (In.): 22-3/4 x 17-3/4
- Base Slots Number & Size (In.): 2 and 5/8
- Motor (HP): 1 HP, 115/230V, 1Ph
- Overall Dimensions (L x W x H) (In.): 33-1/2 x 18-1/2 x 67
- Weight (Lbs.): 304
- Height: 13.0000
- Length: 56.5000
- Weight: 304.0000
- Width: 26.0000
