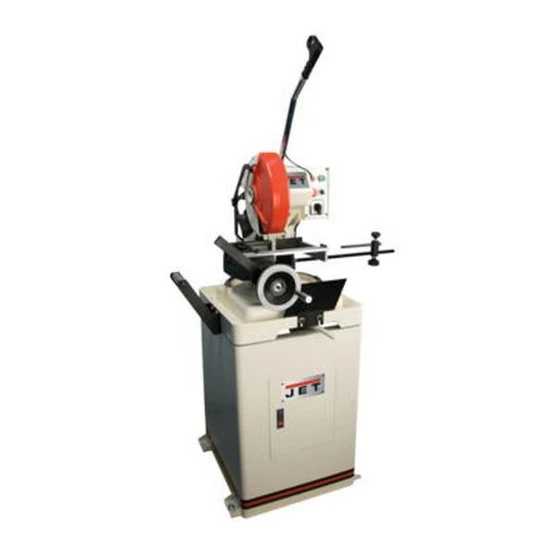

Jet 414228 Cs-275, 275mm 1-phase Ferrous Manual Cold Saw

• 275mm (10″) Ferrous Cold Saw for steel, stainless and tough to cut alloys.
• Spring loaded whole hand trigger starts or stops the sawing process for easy smooth cutting and increased user safety
• Two-piece cast iron blade guard system permits quick and easy blade changes without removing the guards
• Quick clamping cam-action vise with adjustable gib and material support bar for burr-free cutting operations
• Hardened and ground direct drive worm shaft and bronze worm wheel transmits maximum torque to the saw blade
• Blade drive reduction gearbox operates in an oil bath for increaded durability
• Heavy-Duty cast iron frame base with easy access storage provides a stable cuting platform
• Flood Coolant system with a 1-1/3 Gallon coolant reservoir and pump with flow control system extends blade life
• Quick tension and release mitering capabilities with stops at 45° right, 45° left
• Fully adjustable material depth stop for sawing repeatability and increased production

JET Coldsaws deliver clean, burr-free cuts and offer machine shop and fabrication professionals a list of features and standard design characteristics that youve come to expect from JET. All backed by the industry leading full service Two Year Warranty

• Style (Type): Ferrous
• Blade Speeds (RPM): 54
• Tubing Round at 90 Degrees (In.): 3-19/64
• Tubing Round at 45 Degrees (In.): 3-19/64
• Tubing Square at 90 Degrees (In.): 2-1/2 x 2-1/2
• Tubing Square at 45 Degrees (In.): 2-3/16 x 2-3/16
• Tubing Rectangle at 90 Degrees (In.): 3-3/32 x 2
• Tubing Rectangle at 45 Degrees (In.): 2-3/16 x 2
• Solid Round at 90 Degrees (In.): 3-19/64
• Solid Round at 45 Degrees (In.): 3-19/64
• Solid Square at 90 Degrees (In.): 2-1/2 x 2-1/2
• Solid Square at 45 Degrees (In.): 2-3/16 x 2-3/16
• Solid Rectangle at 90 Degrees (In.): 3-3/32 x 2
• Solid Rectangle at 45 Degrees (In.): 2-3/16 x 2
• Blade Size (Mm.): 275 x 32 x 2
• Maximum Vise Opening (In.): 4
• Motor (HP): 1-1/2 HP, 115V, 1 Ph
• Overall Dimensions (L x W xH) (In.): 40 x 39 x 72
• Weight (Lbs.): 360
• Height: 0.0000
• Length: 0.0000
• Weight: 390.0000
• Width: 0.0000
