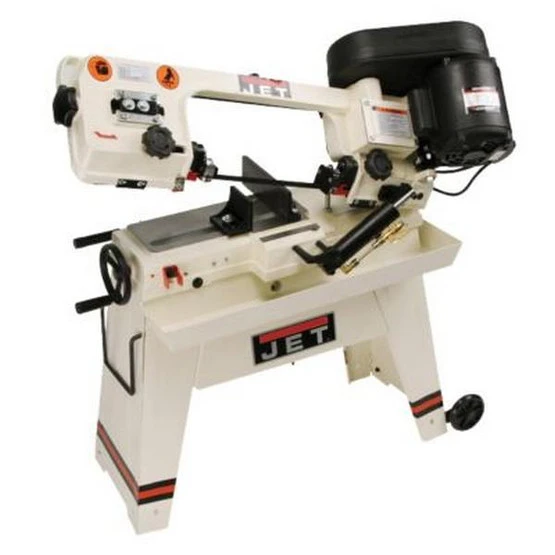

Jet 414453 J-3230, 5″ X 8″ Horizontal Bandsaw

• For added safety, the J-3230 follows strict guidelines and electrical requirements to be certified by CSA Group
• Blade drive is a steel, heat treated worm driving a bronze worm gear in an oil bath
• Adjustable blade guides with side eccentric shaft with ball bearings with rear-ball bearings
• Fully adjustable hydraulic downfeed system
• Heavy Duty 14-gauge steel stand with shelf has been redesigned for stability, rigidity and ease of use.
• Wheels and handle for easy movement
• Automatic shut-off after cut
• Coolant system
• Adjustable material stop
• 1/2″ Carbon Steel Blade

Adjustable guides and hydraulic feed, steel worm gear and bronze drive gear, and auto shutoff at end of the cut are some of the features that makes this JET Hydraulic Band Saw a must for any professional machine shop. The built-in handle and wheels makes relocation within your workspace quick and easy.

• Cutting Capacity (W x D) (In.): 5 x 8
• Round at 90 Degrees (In.): 5
• Round at 45 Degrees (In.): 4-1/2
• Rectangle at 90 Degrees (In.): 7-1/2 x 5
• Rectangle at 45 Degrees (In.): 4-1/2 x 5
• Vise Swivels (Deg.): 45
• Blade Speeds (SFPM): 85, 125, 200
• Blade Wheel Diameter (In.): 7-1/2
• Blade Length (In.): 68-1/2
• Blade Size (In.): 1/2 x .025 x 68
• Bed Height (In.): 23-1/2
• Motor (HP): 1/2 HP, 115V, 1Ph
• Weight (Lbs.): 134
• Overall Dimensions (L x W x H) (In.): 37 x 16 x 37
