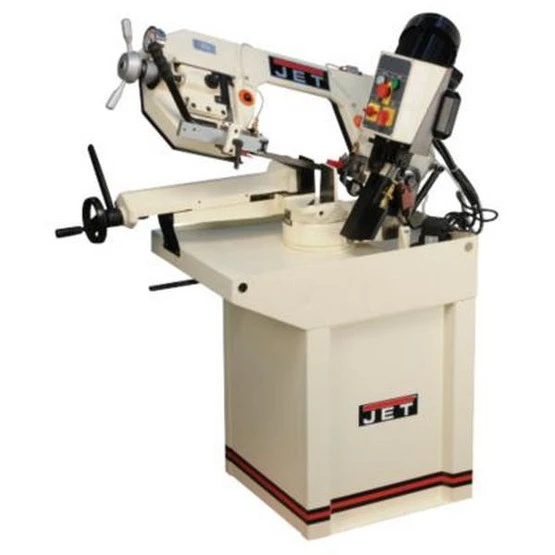

Jet 414464 J-9180-3, 7″ Zip Miter Horizontal Bandsaw

• Mitering head swivels to cut any angle 0° – 60° while the work piece remains secured
• Adjustable blade guides that utilizes cam follower bearings mounted on eccentric shafts
• Convenient control panel with overload protection
• Heavy-duty cast iron saw head and sturdy base
• Fully adjustable hydraulic downfeed system
• Large hand wheel and built-in gauge provides easy blade tensioning
• Quick positioning vise reduces set-up time
• Coolant system
• Adjustable material stop
• 3/4″ Bi-Metal blade

JET Mitering Horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty, JET Mitering Bandsaws are built to last and deliver precision results.

• Cutting Capacity (W x D) (In.): 7
• Round at 90 Degrees (In.): 7
• Round at 45 Degrees (In.): 4-1/2
• Rectangle at 90 Degrees (In.): 7-7/8 x 6
• Rectangle at 45 Degrees (In.): 4-1/2 x 4-1/2
• Head Movement (Deg.): 60
• Blade Size (In.): 3/4 x .035 x 82
• Blade Length (In.): 82
• Blade Wheel Diameter (In.): 10-1/2
• Blade Speed (SFPM): 137, 275
• Bed Height (In.): 35-7/8
• Motor (HP): 1 HP, 230V, 3Ph
• Drive: Geared Head
• Overall Dimensions (L x W x H) (In.): 47 x 29 x 56-1/2
• Weight (Lbs.): 462
• Height: 59.0000
• Length: 47.0000
• Weight: 429.0000
• Width: 28.5000
