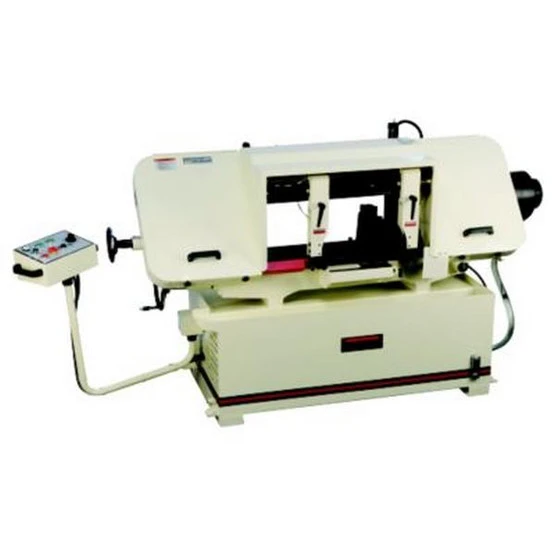

Jet 414476-4 J-7060-4, 12″ X 20″ Semi-automatic Horizontal Bandsaw

• Swing away control panel houses major saw controls
• Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades
• Downfeed system is controlled by a dual system of counterbalance springs working with a hydraulic cylinder
• Saw head raises hydraulically after each cut
• Variable speed drive system allows the operator to easily fine tune the blade speed
• Heavy-Duty transmission utilizes hardened and ground gears operating in an oil bath
• Cast Iron blade wheels
• Patented 3-Jaw vise with rapid action moveable jaw for faster set up
• Coolant system
• Adjustable material stop
• 1″ Bi-Metal blade

This JET large capacity variable speed semi-automatic horizontal bandsaw is loaded with features that allow the operator the ability to fine tune the blade speed easily and quickly on a convenient swing away control panel. The sturdy head raises automatically after each cut and cast iron band wheels give you the confidence of quality cuts, first time, every time.

• Cutting Capacity (W x D) (In.): 12 x 20
• Round at 90 Degrees (In.): 12
• Round at 45 Degrees (In.): 12
• Rectangle at 90 Degrees (In.): 12 x 20
• Rectangle at 45 Degrees (In.): 12 x 12
• Vise Swivels (Deg.): 45
• Blade Speeds (SFPM): 82 – 262
• Blade Wheel Diameter (In.): 17
• Blade Length (In.): 156
• Blade Size (In.): 1 x .035 x 156
• Bed Height (In.): 26-1/4
• Motor (HP): 3 HP, 460V, 3Ph
• Weight (Lbs.): 1,210
• Overall Dimensions (L x W x H) (In.): 87 x 37-1/2 x 53
• Height: 61.0000
• Length: 34.0000
• Weight: 1456.0000
• Width: 86.0000
