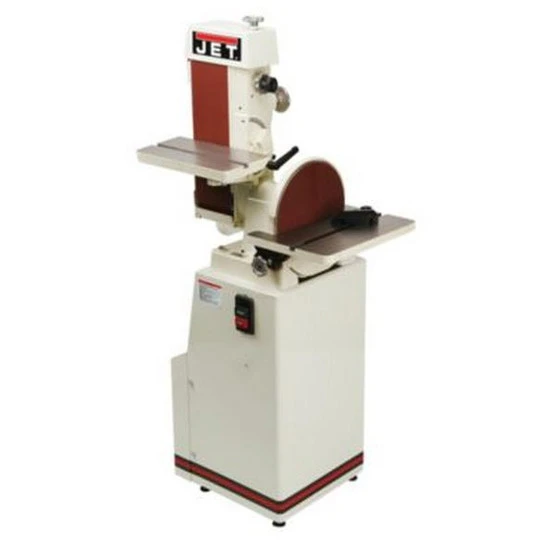

Jet 414553 J-4202a, 6″ X 48″ Industrial Combination Belt And 12″ Disc Finishing Machine 230v 3ph

• For added safety, the J-4202A follows strict guidelines and electrical requirements to be certified by CSA Group
• Plain and compound miters are easily obtained by using the standard die cast aluminum miter gauge
• Fully machined, balanced disc
• Belt operates at any angle
• Removable upper belt guard for contour finishing
• Completely enclosed drums and guarded sanding belt
• Adjustable heavy-duty cast iron removable platen
• Variable position locks
• Belt head adjusts vertically and horizontally
• Large cast iron slotted table
• Adjustable dust collector and dust chute
• Heavy-duty one-piece steel stand
• 60 grit belt and disc standard on machine
• Miter gauge included

High-speed precision and amazing versatility. This rugged piece of equipment has a belt that operates at any angle, and conforms to curves, angles or circular finishing and grinding operations. Machinists who take great pride in their work prefer the JET Industrial Combination Belt & Disc Finishing Machine

• Disc Diameter (In.): 12
• Disc Speed (RPM): 1,960
• Belt Size (W x L) (In.): 6 x 48
• Belt Speed (SFPM): 2,850
• Disc Table Size (L x W) (In.): 12 x 16-3/8
• Disc Table Tilt (Deg.): 45 Out, 20 In
• Table Slots (In.): 3/8 & 3/4
• Belt Table Tilt (Deg.): 45 Out, 20 In
• Belt Table Size (In.): 7-3/8 x 14-3/4
• Motor (HP): 1-1/2 HP, 230V, 3Ph
• Overall Dimensions (L x W x H) (In.): 26 x 19 x 58
• Weight (Lbs.): 250
• Height: 49.0000
• Length: 23.0000
• Weight: 320.0000
• Width: 30.0000
