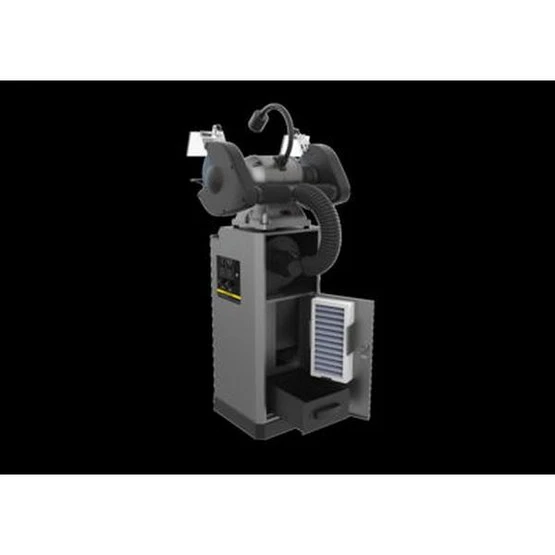

Jet 414800 Jdcs-505, Metal Dust Collector Stand 115v

• Universal Metalworking Dust Collection Stand, fits ANY BRAND bench grinder and bench top belt & disc sanders

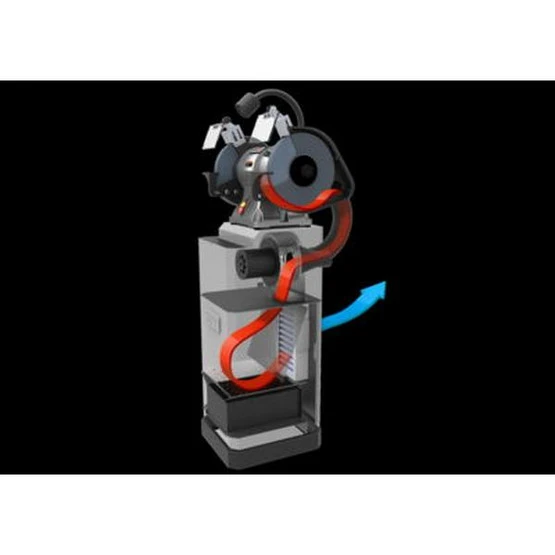

• Turbo fan design provides a maximum of 472 CFM of air movement for effective metal dust collection
• Non-sparking aluminum fan blade and housing eliminates the risk of fire during the collection of abrasive dust and chips
• Two removable water pots gives you the features of a pedestal stand along with all the benefits of a dust collector
• Chips and dust collect into a metal drawer that is easy to empty, and the high temperature filters are replaceable
• ANY BRAND bench top belt, disc or combination machine can be mounted using the optional Universal Adapter Plate (414830)
• Heavy-Duty 16 gauge steel construction
• Four Adjustable Leveling Pads

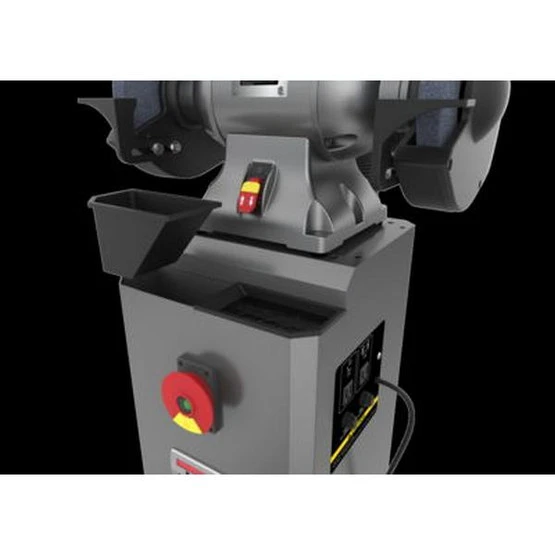

• Large On/off switch with safety key
• CSA/CUS Certified

JETS new Metal Dust Collection Stand is great for collecting abrasive dust from most brands Bench Grinders and Bench Top Belt & Disc Sanders.

• Maximum CFM: 472
• Maximum Hose Velocity (SFPM): 3,465
• Static Pressure (Wc.): 748
• Filter Size (W x L x D) (In.): 6-3/4 x 2-5/8 x 13-1/2
• Filter Efficiency: 90% @ 50 Microns
• Sound Rating (Db.): 75 db @ 10 Ft
• Max. Static Pressure (Wc.): 2,440
• Hose Size (W x L) (In.): 2 Inlets @ 3″
• Motor (HP): 1/2 HP, 115V, 1Ph (20A)
• Weight (Lbs.): 110
• Height: 32.2500
• Length: 15.5000
• Weight: 86.0000
• Width: 16.0000
