- Drop Forged cylinder for added durability
- Easy servicability with the 4-Bolt backhead
- Heavy duty front headsprings decrease repetitive impact forces reducing fatigue
- Heavy-Duty, industry proven design
- Large diameter, smooth stroke piston
- Rubber handle grips reduce vibration
- Replaceable front head bushing
- Chisel retainer latch
- All shank sizes accommodate standard steel
- Performace @ 90 PSI. Air Inlet NPT 3/4″. Min Hose Size 3/4″

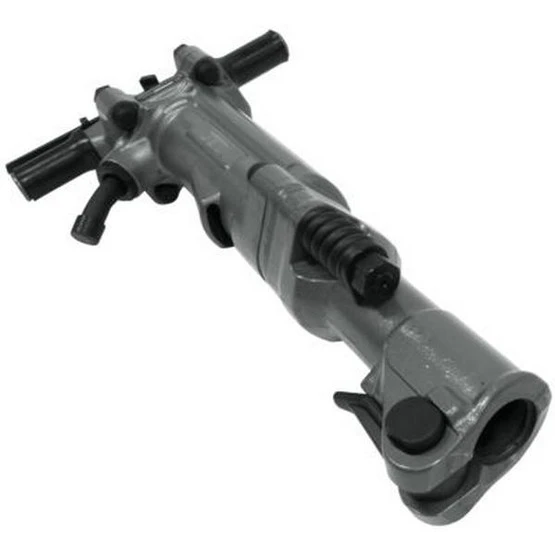

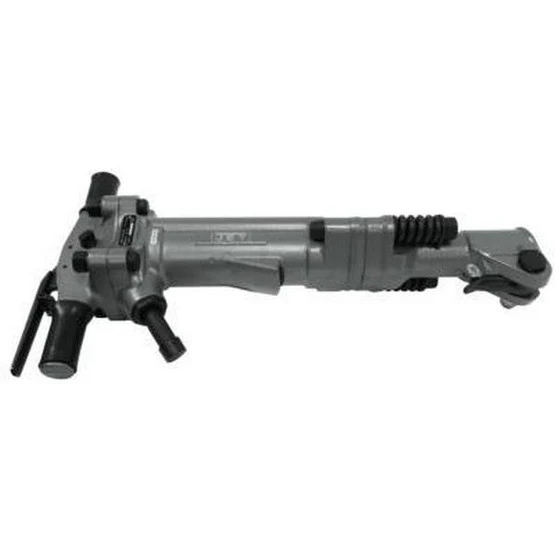

JET Paving Breakers are designed for your demolition needs. Each model features full control throttle, drop forged cylinders, rubber handle grips, and four-bolt head-to-cylinder construction for maximum durability.
- Hex Shank Size (In.): 1-1/8 x 6
- Piston Diameter (In.): 2-5/8
- Piston Stroke (In.): 6
- Blows Per Minute (BPM): 1,250
- Oil Reservoir Capacity (cc): 36
- Energy Per Blow @ 90 PSI (Ft.) (Lb.): 183
- Air Consumption (CFM): 77
- Air Pressure (PSI): 90
- Air Inlet (NPT/In.): 3/4
- Min. Air Hose (ID/In.): 3/4
- Vibration Value (m/s): 17.3
- Noise Level (dB) (A): 110
- Overall Length (In.): 36-1/2
- Weight (Lbs.): 92.4
- Height: 6.0000
- Length: 31.0000
- Weight: 100.0000
- Width: 16.0000
