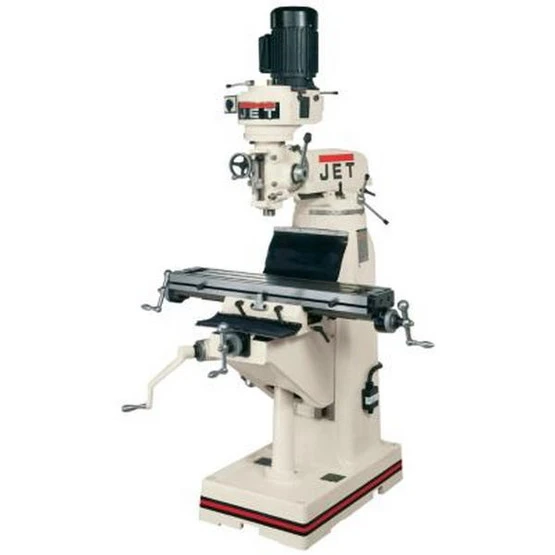

Jet 690190 Jvm-836-3 Mill With Acu-rite 203 Dro

• Precision bored and honed milling head
• Large diameter quill is chromed
• High precision spindle bearings
• Over 10” of front to back ram travel
• Locks on all movable surfaces
• Hardened and ground precision table
• Head tilts left or right
• Graduated scale on column
• Precision ground dovetail ways
• One shot lubrication system
• Way covers
• Draw bar
• Tool box and tools

The precision bored and honed milling head, coupled with the hardened and ground 8 x 36 table ensures retention of tolerances, while locks on all moving surfaces increase user safety. The JET JVM-836 has features you’ve come to expect that are backed by the industry-leading JET Two Year Warranty

• Digital Readout: ACU-RITE 200S
• Number of Axis: 2
• Spindle Taper (In. x TPI): R-8
• Table Size (L x W) (In.): 7-7/8 x 35-3/4
• Quill Diameter (In.): 3-3/8
• Number of Spindle Speeds: 10
• Range of Spindle Speeds (RPM): 120 – 1,550
• Quill Down Feed Rates (IPR): .0015 – .003 – .006
• Spindle Travel (In.): 5
• Head Movement (Deg.): 90 R & L
• Max Distance Spindle to Table (In.): 13-3/4
• Distance Spindle to Column (Max.) (In.): 15-3/4
• Distance Spindle to Column (Min.) (In.): 5-1/4
• Collet Capacity: 1/8 – 7/8
• Table Longitudinal Travel (In.): 22-1/4
• Table Longitudinal Travel With Powerfeed (In.): 18
• Table Cross Travel (In.): 9-1/2
• T-Slots Number and Size (In.): 3 and 5/8
• T-Slot Centers (In.): 2-1/2
• Work Table Weight Capacity (Lbs.): 500
• Travel of Knee (In.): 14
• Travel of Ram (In.): 10-1/2
• Motor (HP): 1-1/2 HP, 230V Only, 3Ph
• Overall Dimensions (L x W x H) (In.): 55 x 52 x 78
• Weight (Lbs.): 1,610
• Height: 67.0000
• Length: 66.0000
• Weight: 1631.0000
• Width: 56.0000
