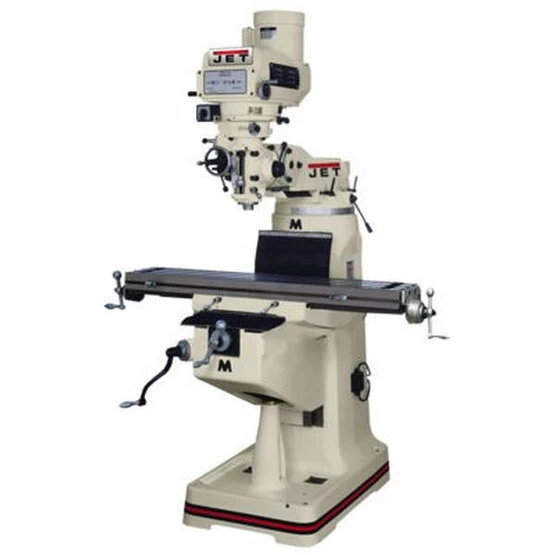

Jet 690231 Jtm-4vs Mill With Acu-rite 203 Dro With X, Y & Z-axis Powerfeeds With Air Powered Draw Bar
Original price was: $395.00.$99.99Current price is: $99.99.
- Peace of Mind with Every Purchase
- There are quality problems, free return and exchange
- Shop with Ease
- The quality solution for all your needs.
- Certified Meehanite® Castings
- Precision bored and honed milling head
- Large diameter quill is chromed
- High precision Class 7 spindle bearings
- Chrome plated motor shaft with lower bearing support
- Spindle head is internally cooled
- Heavy duty splined motor drive
- One piece quill pinion and shaft
- Three stage power downfeed with automatic stop
- Heavy duty spindle brake
- Locks on all movable surfaces
- Precision hardened and ground ways and table
- Adjustable gibs throughout
- Internal coolant tank built into casting base for use with coolant system (coolant pump not included)
- Tolerance test sheet included
- One shot lubrication system
- Way covers
- Draw bar
- Tool box with tools
- Digital Readout: ACU-RITE 200S
- Number of Axis: 2
- Powerfeed: X, Y and Z-Axis
- Power Draw Bar: Pneumatic
- Spindle Taper (In. x TPI): R-8
- Table Size (L x W) (In.): 9 x 49
- Quill Diameter (In.): 3-3/8
- Number of Spindle Speeds: Variable
- Range of Spindle Speeds (RPM): 60 – 4,200
- Quill Down Feed Rates (IPR): .0015 – .003 – .006
- Spindle Travel (In.): 5
- Head Movement (Deg.): 90 R & L, 45 F & B
- Max Distance Spindle to Table (In.): 17-1/2
- Distance Spindle to Column (Max.) (In.): 19
- Distance Spindle to Column (Min.) (In.): 4-1/2
- Collet Capacity: 1/8 – 7/8
- Table Longitudinal Travel (In.): 34
- Table Longitudinal Travel With Powerfeed (In.): 28-3/4
- Table Cross Travel (In.): 12
- T-Slots Number and Size (In.): 3 and 5/8
- T-Slot Centers (In.): 2-1/2
- Travel of Knee (In.): 14-1/2
- Travel of Ram (In.): 13-3/8
- Motor (HP): 3 HP, 230/460V, 3Ph
- Overall Dimensions (L x W x H) (In.): 66 x 63 x 85
- Weight (Lbs.): 2,420
- Height: 0.0000
- Length: 0.0000
- Weight: 2800.0000
- Width: 0.0000
