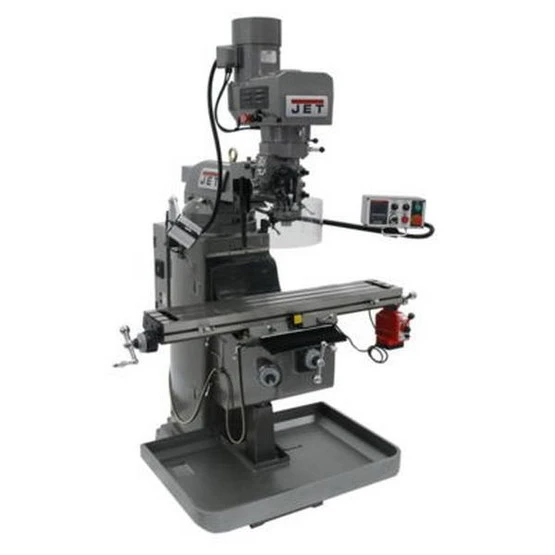

Jet 690545 Jtm-949evs Mill With 3-axis Newall Dp700 Dro (quill) With X-axis Powerfeed
Original price was: $314.00.$99.99Current price is: $99.99.
- Peace of Mind with Every Purchase
- There are quality problems, free return and exchange
- Shop with Ease
- The quality solution for all your needs.
- New! JET designed Certified Meehanite® casting with enhanced ribbing ensures rigidity and tolerance retention
- Swing away control box houses an e-stop and puts all controls at the operators fingertips
- The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
- Automatic oiler releases 3 to 6 cc/cy of lubrication every 30 minutes
- For added safety, the heavy-duty spindle break stops the spindle and interrupts the power, preventing accidental start-ups
- The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
- CSA/CUS Certified
- Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
- Spindle head is internally cooled extending bearing, belt and motor life
- Table and ways are hardened up to 54 HRC and precision ground for greater accuracy
- The X and Y-Axis are coated with Turcite-B for reduced vibration and smooth movements
- Swing away safety shield
- LED work lamp
- Chip pan
- Dual locks on all moveable surfaces
- Way covers
- Drawbar
- Tool box with tools
- Digital Readout: Newall DP700
- Number of Axis: 3 (Quill)
- Powerfeed: X-Axis
- Spindle Taper (In. x TPI): R-8
- Table Size (L x W) (In.): 9 x 49
- Quill Diameter (In.): 3-3/8
- Number of Spindle Speeds: Variable
- Range of Spindle Speeds (RPM): 60 – 4,500
- Quill Down Feed Rates (IPR): .0015 – .003 – .006
- Spindle Travel (In.): 5
- Head Movement (Deg.): 90 R & L, 45 F & B
- Max Distance Spindle to Table (In.): 20-3/4
- Distance Spindle to Column (Max.) (In.): 18-1/8
- Distance Spindle to Column (Min.) (In.): 4-3/4
- Collet Capacity: 1/8 – 7/8
- Table Longitudinal Travel (In.): 36
- Table Longitudinal Travel With Powerfeed (In.): 30-3/4
- Table Cross Travel (In.): 12-5/8
- T-Slots Number and Size (In.): 3 and 5/8
- T-Slot Centers (In.): 2-1/2
- Work Table Weight Capacity (Lbs.): 720
- Travel of Knee (In.): 15-3/4
- Travel of Ram (In.): 15-1/4
- Saddle Width (In.): 11-1/2
- Column Width (In.): 18
- Inverter Type: Delta, B
- Motor (HP): 3HP, 230V, 3Ph
- Overall Dimensions (L x W x H) (In.): 67 x 64 x 86
- Weight (Lbs.): 2,420
- Height: 86.0000
- Length: 66.0000
- Weight: 2420.0000
- Width: 63.0000
