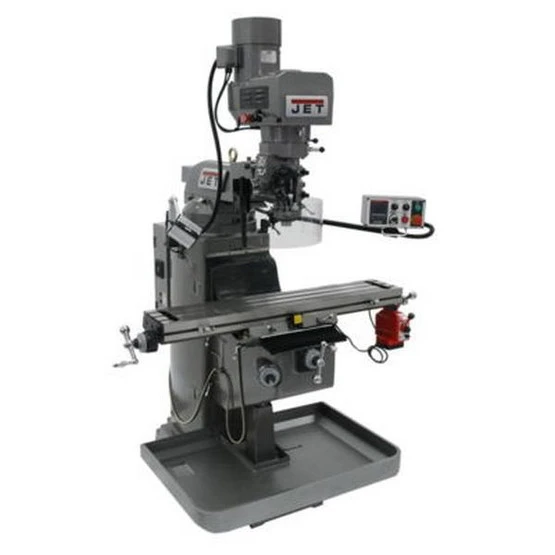

Jet 690645 Jtm-1050evs2/230 Mill With 3-axis Newall Dp700 Dro (quill) With X-axis Powerfeed And Air Powered Draw Bar

• JET designed Certified Meehanite® casting with enhanced ribbing ensures rigidity and tolerance retention
• Swing away control box houses an e-stop and puts all controls at the operators fingertips
• The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
• Automatic oiler releases 3 to 6 cc/cy of lubrication at adjustable time intervals
• For added safety, the heavy-duty spindle break stops the spindle and interrupts the power, preventing accidental start-ups
• The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
• CSA/CUS Certified
• Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
• Spindle head is internally cooled extending bearing, belt and motor life
• Table and ways are hardened up to 54 HRC and precision ground for greater accuracy
• The X and Y-Axis are coated with Turcite-B for reduced vibration and smooth movements
• Swing away safety shield
• LED work lamp
• Chip pan
• Dual locks on all moveable surfaces
• Way covers
• Drawbar
• Tool box with tools

Constructed using the Meehanite casting process, the JTM-1050EVS2/230, 10″ x 50″ Electronic Variable Speed Milling Machine provides consistent and reliable operation. The newly designed column and base incorporates a rigid, robust design that is easily leveled without lifting the machine. JET Mills have features you’ve come to expect and are backed by the industry-leading JET Two Year Warranty

• Digital Readout: Newall DP700
• Number of Axis: 3 (Quill)
• Powerfeed: X-Axis
• Power Draw Bar: Pneumatic
• Spindle Taper (In. x TPI): R-8
• Table Size (L x W) (In.): 10 x 50
• Quill Diameter (In.): 3-3/8
• Number of Spindle Speeds: Variable
• Range of Spindle Speeds (RPM): 60 – 4,500
• Quill Down Feed Rates (IPR): .0015 – .003 – .006
• Spindle Travel (In.): 5
• Head Movement (Deg.): 90R & L 45 F & B
• Max Distance Spindle to Table (In.): 20-3/4
• Distance Spindle to Column (Max.) (In.): 26-3/4
• Distance Spindle to Column (Min.) (In.): 4-3/4
• Collet Capacity: 1/8 – 7/8
• Table Longitudinal Travel (In.): 35-1/3
• Table Longitudinal Travel With Powerfeed (In.): 29-7/8
• Table Cross Travel (In.): 14-3/4
• T-Slots Number and Size (In.): 3 and 5/8
• T-Slot Centers (In.): 2-1/2
• Work Table Weight Capacity (Lbs.): 840
• Travel of Knee (In.): 16-1/8
• Travel of Ram (In.): 15-7/8
• Saddle Width (In.): 11-1/2
• Column Width (In.): 20
• Inverter Type: Delta, B
• Motor (HP): 3 HP, 230V, 3Ph
• Overall Dimensions (L x W x H) (In.): 66 x 63 x 87
• Weight (Lbs.): 2,860
• Height: 87.0000
• Length: 66.0000
• Weight: 2580.0000
• Width: 63.0000
