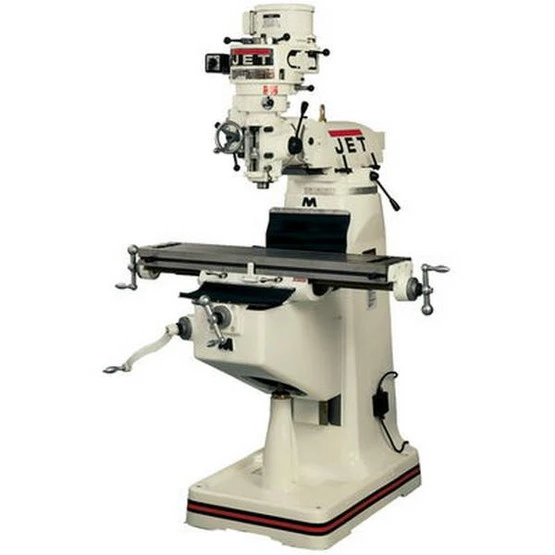

Jet 692194 Jtm-2 Mill With Newall Dp500 Dro With X-axis Powerfeeds

• Certified Meehanite® Castings
• Precision bored and honed milling head
• Large diameter quill is chromed
• High precision Class 7 spindle bearings
• Spindle head is internally cooled
• Heavy duty splined motor drive
• One piece quill pinion and shaft
• Three stage power downfeed with automatic stop
• Heavy duty spindle brake
• Precision hardened and ground ways
• Precision ground table
• Standard Equipment
• Internal coolant tank built into base for use with coolant system (coolant pump not included)
• Tolerance test sheet included
• One shot lubrication system
• Way covers
• Draw bar
• Tool box with tools

Three-stage power down feed with auto stop, high precision Class 7 spindle bearings and the rugged stability of Meehanite castings ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features you’ve come to expect, all backed by the industry-leading JET Two Year Warranty

• Digital Readout: Newall DP500
• Powerfeed: X-Axis
• Spindle Taper (In. x TPI): R-8
• Table Size (L x W) (In.): 9 x 42
• Quill Diameter (In.): 3-3/8
• Number of Spindle Speeds: 8
• Range of Spindle Speeds (RPM): 80 – 2,720
• Quill Down Feed Rates (IPR): .0015 – .003 – .006
• Spindle Travel (In.): 5
• Head Movement (Deg.): 90 R & L, 45 F & B
• Max Distance Spindle to Table (In.): 17-1/2
• Distance Spindle to Column (Max.) (In.): 19
• Distance Spindle to Column (Min.) (In.): 4-1/2
• Collet Capacity: 1/8 – 7/8
• Table Longitudinal Travel (In.): 23-7/8
• Table Longitudinal Travel With Powerfeed (In.): 20-2/7
• Table Cross Travel (In.): 12-1/2
• T-Slots Number and Size (In.): 3 and 5/8
• T-Slot Centers (In.): 2-1/2
• Work Table Weight Capacity (Lbs.): 550
• Travel of Knee (In.): 14-1/2
• Travel of Ram (In.): 13-3/8
• Motor (HP): 2 HP, 115/230V, 1Ph
• Overall Dimensions (L x W x H) (In.): 57 x 64 x 82
• Weight (Lbs.): 2,200
