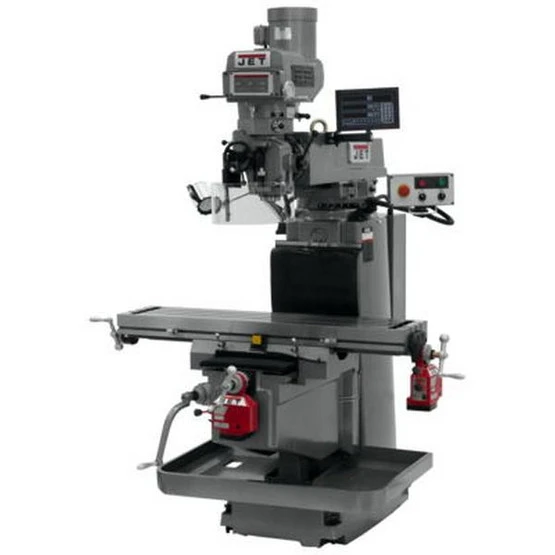

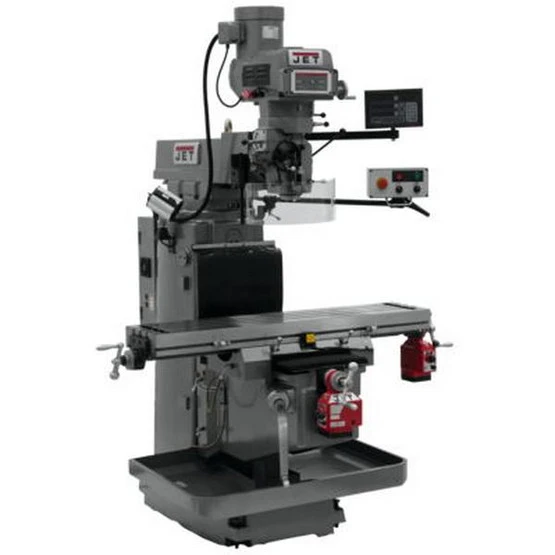

Jet 698080 Jtm-1254vs With Newall Dp700 3x (q) Dro, X & Y Powerfeeds

• Certified Meehanite® Castings
• Precision bored and honed milling head
• High precision Class 7 spindle bearings
• Quick Spindle Feed Nut
• Three-stage power downfeed with automatic stop
• Heavy-duty spindle brake
• Precision hardened and ground ways and table
• Three Precision ground t-slots
• Turcite B on X & Y Axis
• Adjustable gibs throughout
• CSA/CUS: Following strict guidelines and electrical requirements, these JET Mills are CSA/CUS certified
• Spindle Guard
• Spindle Brake for rapid stopping of the spindle
• Automatic Lubrication every 180 minutes with a flow of 3-6cc reduces maintenance
• Quick nut for spindle feed
• JET exclusive new casting provides the end-user an easier solution to leveling the machine without raising it up off the floor
• Two 115V outlets on electrical box for Powerfeeds only
• STANDARD EQUIPEMENT
• Spindle Safety Guard
• Led Machine Lamp
• Dual Locks on All Moveable Surfaces
• Chip Pan
• Draw bar
• Tool box with tools

The JET JTM-1254RVS and JTM-1254VS combine durability, strength and precision engineering, resulting in 12 x 54 Variable Speed Vertical Milling Machines that turn out high quality components. Designed for ease of use, Jet Mills provide ongoing automatic lubrication and quick nut spindle feed along with the JET exclusive new casting, providing the end-user with an easier solution to leveling the machine without raising it up off the floor. These heavy-duty mills are offered in both R-8 & NT-40 Spindles with all the features you’ve come to expect backed by the industry-leading JET Two Year Warranty.

• Digital Readout: Newall DP700
• Number of Axis: 3 (Quill)
• Powerfeed: X & Y-Axis
• Spindle Taper (In. x TPI): NST #40
• Table Size (L x W) (In.): 12 x 54
• Quill Diameter (In.): 4-1/8
• Range of Spindle Speeds (RPM): 80 – 3,800
• Quill Down Feed Rates (IPR): .0015.003.008
• Spindle Travel (In.): 5
• Head Movement (Deg.): 90R & L 45 F & B
• Max Distance Spindle to Table (In.): 23
• Distance Spindle to Column (Max.) (In.): 27-3/4
• Distance Spindle to Column (Min.) (In.): 7 1/2
• Collet Capacity: 1/8 – 1
• Table Longitudinal Travel (In.): 33-7/8
• Table Longitudinal Travel With Powerfeed (In.): 28-1/4
• Table Cross Travel (In.): 15-1/3
• T-Slot Centers (In.): 2-1/2
• Work Table Weight Capacity (Lbs.): 925
• Travel of Knee (In.): 19-1/4
• Travel of Ram (In.): 25
• Saddle Width (In.): 25-5/8
• Column Width (In.): 14-1/4
• Motor (HP): 5HP, 230/460V, 3Ph
• Overall Dimensions (L x W x H) (In.): 92-1/8 x 79-7/8 x 104-1/4
• Weight (Lbs.): 3696
• Height: 104.2500
• Length: 92.1250
• Weight: 3696.0000
• Width: 79.8750
