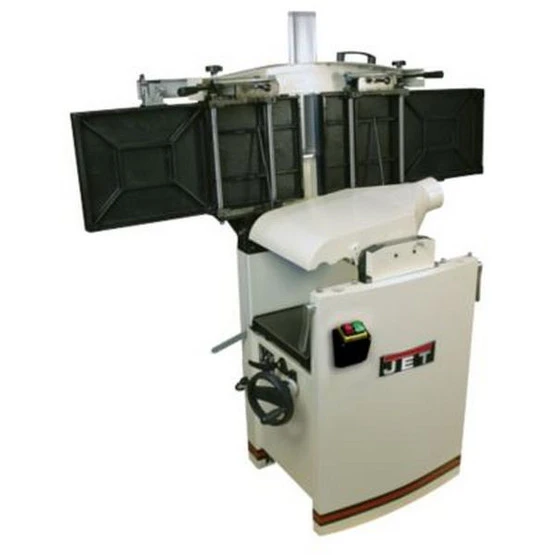

Jet 708475 Jjp-12, 12″ Planer/jointer 3hp 1ph 230v

• Three high-speed steel knife cutter head provides rapid cutting and a superior finish
• Parallelogram design keeps the table close to the cutterhead for improved finish and allows for precise depth of cut adjustments
• Extra large aluminum extruded fence with centered controls for quick adjustments
• Extrmemly quick changeover between jointing and planing functions. Fence does not need to be removed
• Powerful 3HP induction motor easily handles the toughest jointing and planing tasks
• Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability
• Built-in dust chute with 4″ dust port used for both jointing and planing operations
• Large handwheel for quick and precise adjustments of planer table
• Heavy-duty cast iron tables with a machined finish to ensure accuracy and flatness
• Magnetic switch provides safer and more reliable operation

You dont have to choose between buying a jointer or a planer with the JJP-12, you can have both. Leave it to JET to design a machine that allows quick changeover between jointing and planing functions. This versatile machine features an extra-large aluminum extruded fence with centered controls for quick adjustments, a built-in dust chute capable of handling both planing and jointing operations, and a powerful 3-horsepower induction motor that can handle the toughest lumber. A heavy-duty, fully welded steel base cabinet houses the motor and the planer table mechanism, while providing solid mounting for the associated controls and support for the jointer table and fence assemblies. Best of all, the fence can stay put when changing over functions. Its the best of both worlds, and it comes from JET.

• Style (Type): Planer/Jointer
• Helical Knife Size (L x W x T) (In.): 12 x 1/35 x 1/8
• Cutterhead Diameter (In.): 2-3/4
• Cutterhead Speed (RPM): 5500
• Planer Cutting Capacity (W x D) (In.): 12 x 5/32
• Planer Table Size (L x W) (In.): 21-1/4 x 12
• Jointer Cutting Capacity (W x D) (In.): 12 x 1/8
• Jointer Table Size (L x W) (In.): 55 x 12
• Fence Size (L x H) (In.): 43 x 6
• Fence Positive Stops (Deg.): 90, 45 R
• Fence Tilt (Deg.): 90 – 45 R
• Dust Collection Minimum CFM Required (CFM): 400
• Dust Port Outside Diameter (In.): 4
• Motor Power (HP): 3
• Motor Voltage (V.): 230
• Prewired Voltage (V.): 230
• Height: 40.0000
• Length: 55.0000
• Weight: 600.0000
• Width: 34.0000
