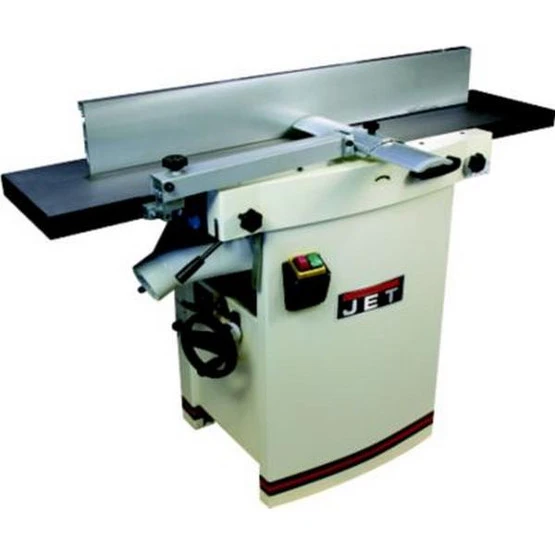

Jet 708476 Jjp-12hh 12 Ft. Planer /jointer With Helical Head

• Helical cutterhead with indexable carbide inserts for a superior finish and quieter cut
• Parallelogram design keeps the table close to the cutterhead for improved finish and allows for precise depth of cut adjustments
• Extra large aluminum extruded fence with centered controls for quick adjustments

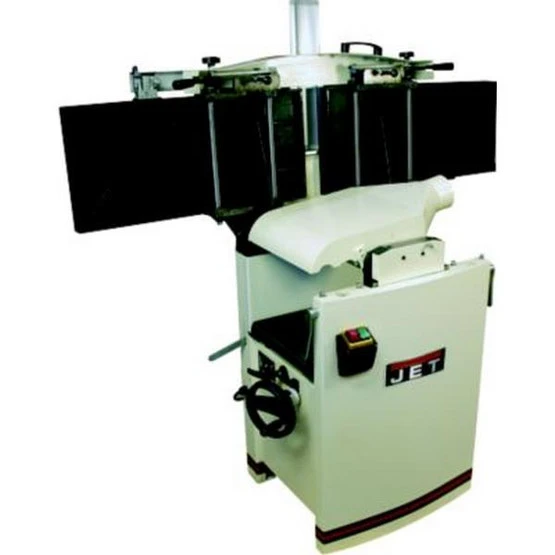

• Extremely quick changeover between jointing and planing functions. Fence does not need to be removed
• Powerful 3HP induction motor easily handles the toughest jointing and planing tasks
• Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability
• Built-in dust chute with 4″ dust port used for both jointing and planing operations
• Large handwheel for quick and precise adjustments of planer table
• Heavy-duty cast iron tables with a machined finish to ensure accuracy and flatness
• Magnetic switch provides safer and more reliable operation

The innovative JET JJP-12HH Helical Head 12″ Jointer/Planer takes our award-winning jointer/planer combination machine and makes it an ever better investment. With the addition of our quality helical cutterhead with indexable carbide inserts, the all-new JJP-12HH sets the standard for creating superior stock in your own workshop.

• Style (Type): Planer/Jointer
• Helical Knife Size (L x W x T) (In.): 59/100 x 59/100 x 1/100
• Cutterhead Diameter (In.): 2-3/4
• Cutterhead Speed (RPM): 5500
• Planer Cutting Capacity (W x D) (In.): 12 x 5/32
• Planer Table Size (L x W) (In.): 21-1/4 x 12
• Jointer Cutting Capacity (W x D) (In.): 12 x 1/8
• Jointer Table Size (L x W) (In.): 55 x 12
• Fence Size (L x H) (In.): 43 x 6
• Fence Positive Stops (Deg.): 90, 45 R
• Fence Tilt (Deg.): 90 – 45 R
• Dust Collection Minimum CFM Required (CFM): 400
• Dust Port Outside Diameter (In.): 4
• Motor Power (HP): 3
• Motor Voltage (V.): 230
• Prewired Voltage (V.): 230
• Height: 40.0000
• Length: 55.0000
• Weight: 600.0000
• Width: 34.0000
