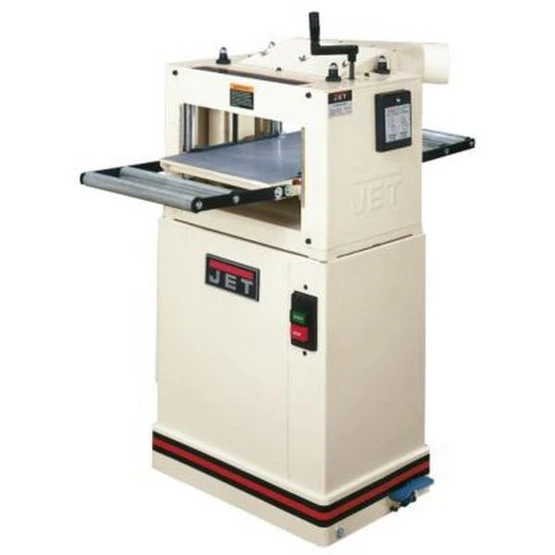

Jet 708524 Jpm-13cs, 13″ Closed Stand Planer / Molder, 1-1/2hp, 1ph, 115/230v

• Cast iron table and base provide strength and reduce vibration during use
• Four precision-ground column design feature adds stability when raising and lowering the table
• Three cutter head design produces a superior finish in either application
• Two speed gear box has feed rates set for optimum planing and molding results
• Molding cutter head accommodates over 40 standard molding cutter sets; most 2″ or smaller heads can be installed without removing the planning knives to save you set-up time
• Infeed and outfeed rollers are adjustable and rubber-coated to support your workpiece without marring the wood
• Top-mounted height adjustment handle is easy to use for quick table height changes
• Totally enclosed fan-cooled 1-1/2HP motor uses two matched V-belts to deliver smooth, consistent power to the cutter head
• Exclusive angled 4″ dust port keeps the dust hose out of the way while providing efficient chip and dust removal
• Built-in lockable casters add support and stability to machine while in use

The JET JPM-13CS 13″ Closed Stand Planer / Molder boasts a 1.5 HP motor. The sturdy cast iron table and base provide strength and reduce vibration during use. The Three cutter head design produces a superior finish. Built in lockable caster add support and stability to the machine while allowing it to be maneuverable.

• Style (Type): Planer/Molder
• Maximum Planing Width (In.): 13
• Minimum Planing Length (In.): 14
• Maximum Planing Thickness (In.): 6-1/8
• Number of Knives: 3
• Cuts Per Minute: 13500
• Cutterhead Diameter (In.): 2-9/16
• Cutterhead Speed (RPM): 4500
• Feed Rate – Planing (FPM): 20
• Feed Rate – Molding (FPM): 10
• Dust Port Outside Diameter (In.): 4
• Motor Power (HP): 1-1/2
• Motor Phase (PH): 1
• Motor Voltage (V.): 115/230
• Prewired Voltage (V.): 115
• Motor Amps: 15/7.5
• Height: 41.0000
• Length: 25.0000
• Weight: 258.0000
• Width: 24.0000
