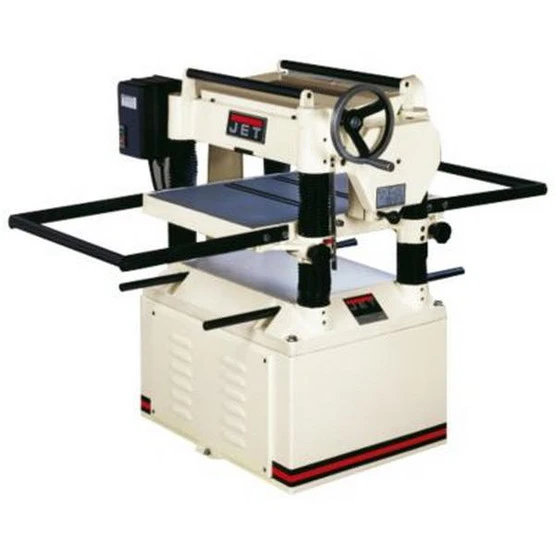

Jet 708528 Jwp-208-1, 20″ 3hp, 1ph Planer

• Four high-speed steel cutter knives produce faster, smoother cutting
• Heavy-duty cast iron and steel construction for added strength and durability
• Two-speed gear box with automatic chain tensioner lets you adjust the feed rate to meet your needs
• Large, cast iron, precision ground table for precise workpiece support
• Powerful 3 HP TEFC induction motor with three V-belt transmission for smooth and consistent power
• Sets of three steel infeed and outfeed rollers to help in the prevention of snipe
• Positive gear drive moves table quickly and accurately
• Work table is precision-ground and polished for consistently smooth operation
• Large handwheel with positive gear drive allows for quick and accurately table adjustments
• 1/16″ increment height scale lets you make the most precise adjustments for fine cuts
• 5″ dust port provides efficient chip and dust collection
• One-piece welded steel base offers solid support and stability
• Magnetic controls provide long life and reliability

The JET JWP-208-1 planer quickly and quietly transforms rough lumber into smooth boards, with a full 20 planing width. Its heavy-duty cast iron and steel construction keeps the workpiece steady and supported, while the conveniently located two-speed gear box allows for quick and easy feed rate adjustments. This machine means business with a powerful 3 HP induction motor. Youll appreciate the sets of three steel infeed and outfeed rollers to help prevent annoying snipe. A large cast-iron table with smooth-as-glass surface makes this planer a beautiful addition to the shop. And since planers kick up a lot of dust, we made dust collection easy with an exclusive angled 4″ dust port to keep your hose out of the way.

• Style (Type): Planer
• Cutterhead Speed (RPM): 5000
• Cutterhead Diameter (In.): 3-3/16
• Number of Knives: 4
• Maximum Full Width Depth of Cut (In.): 3/32
• Maximum Planing Width (In.): 20
• Maximum Planing Thickness (In.): 8
• Minimum Planing Length (In.): 6-3/4
• Feed Rate (FPM): 24/31
• Table Size (L x W) (In.): 25-3/4 x 20
• Dust Collection Minimum CFM Required (CFM): 400
• Dust Port Outside Diameter (In.): 5
• Motor Power (HP): 3
• Motor Phase (PH): 1
• Motor Voltage (V.): 230
• Prewired Voltage (V.): 230
• Motor Amps: 14
• Height: 43.0000
• Length: 29.5000
• Weight: 765.0000
• Width: 37.5000
