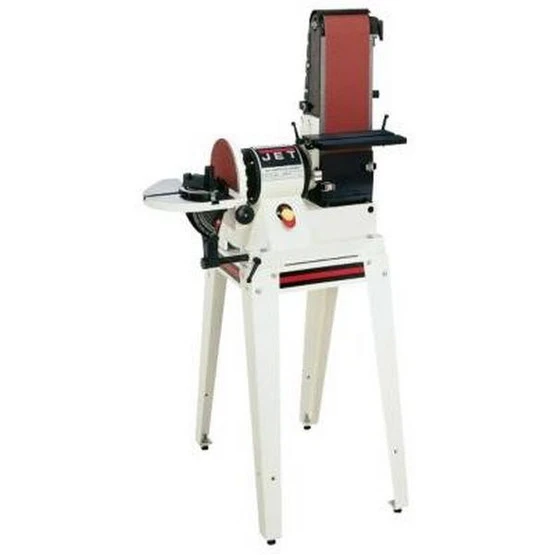

Jet 708596K Jsg-96os, 6″ X 48″ Belt / 9″ Disc Sander With Open Stand, 3/4hp 1ph, 115v

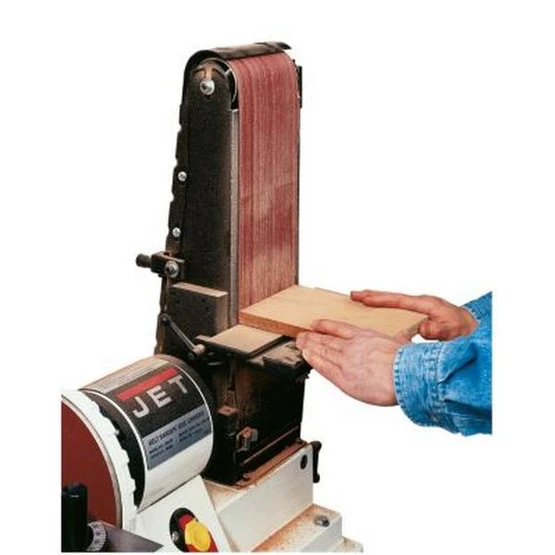

• Large cast iron table has preset stops at 90° and 45° to let you use the belt sander vertically, horizontally or anywhere in between
• Exclusive dual thumbscrew belt tracking adjustment locks to keep belt on track during use
• Graphite covered steel platen runs cooler increasing machine and belt life
• Specially designed belt guard allows full use of the 6″ belt width and length
• Drive drum is rubber-coated for a better grip on the sanding belt resulting in less slippage
• Tracking adjustment knob with quick-lock handle keeps belt on track during use
• Quick-release belt tension lever makes belt changes fast and easy
• Quick-lock dust cover allows fast disc changes
• Single 4″ dust port on the back of the base collects dust effectively from both the belt and disc
• Powerful 3/4HP motor easily handles the toughest sanding operations
• Built-in handles for easier portability
• Heavy-duty steel open-style stand provides solid support

The unique JSG-96OS Sander combines a 9″ disc and 6″ x 48″ belt for workshop versatility. While small and compact, the JSG-96 offers industrial 3/4 HP power while taking up a small footprint in your shop. A quick-release belt tension lever makes belt changes fast and easy while a quick-lock dust cover allows fast disc changes.

• Style (Type): Open Stand
• Disc Diameter (In.): 9
• Disc Speed (RPM): 1725
• Disc Table Tilt (Deg.): 10 Up, 45 Down
• Disc Table Size (L x W) (In.): 12 x 7-1/2
• Sanding Belt Size (L x W) (In.): 48 x 6
• Belt Speed (RPM): 2258
• Belt Table Tilt (Deg.): 10 Up, 45 Down
• Belt Table Size (L x W) (In.): 11 x 5-1/2
• Dust Port Outside Diameter (In.): 4
• Motor Power (HP): 3/4
• Motor Phase (PH): 1
• Motor Voltage (V): 115
• Prewired Voltage (V): 115
• Motor Amps: 11
• Height: 0.0000
• Length: 0.0000
• Weight: 159.0000
• Width: 0.0000
