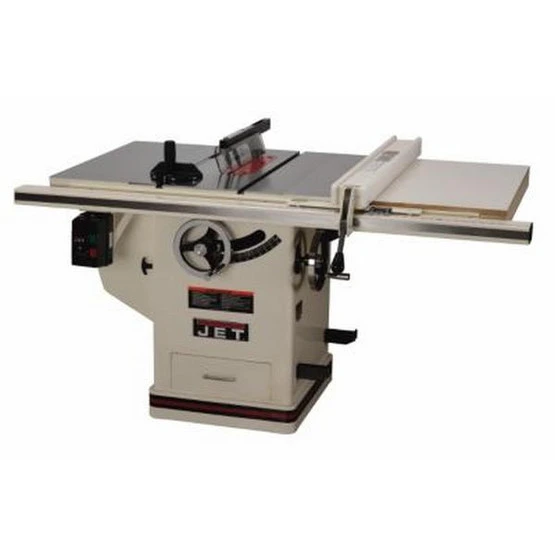

Jet 708676PK Deluxe Xacta® Saw 5hp, 1ph, 30″ Rip

• EXCLUSIVE 30″ Commercial XACTA® Fence II with T-square design
• Quick release riving knife greatly reduces binding/kickback risk
• Push button arbor lock for rapid blade change
• Shrouded Blade increases dust collection efficiency
• Standard 11″ left and right cast iron extension wings provides the largest table surface in its class
• Poly-V drive belt system delivers quiet, efficient operation
• Rail-mounted magnetic switch is easy to reach and provides overload protection
• Enclosed cabinet with built-in sealed storage drawer
• Hinged motor cover on cabinet gives quick access to the motor and belts
• Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters
• Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement
• Built-in 4″ dust collection port
• Precision ground high luster cast iron table tops with front edge bevel for hassle-free workpiece positioning
• Left tilt, Wide stance heavy-duty trunnion for stability and smooth blade positioning
• Independent leaf safety guard protects operator from blade while cutting, even at 45° tilt
• Arbor wrench
• Powder coated paint for a long-lasting, chip-resistant finish

If you’ve ever wondered about what a table saw can really do, look no further. Introducing the new JET 10″ DELUXE XACTA SAW. The Quick release riving knife and integrated arbor lock keeps the operator safe and more efficient. The DELUXE XACTA SAW offers an upgraded Poly-V belt drive system for smooth operation and optimal power transfer, a fully shrouded blade for highly efficient dust collection. The 26″ x 30″ wings and deeper table gives you even more cast iron to work on. A built-in 12.5″ x 18″ x 4 ” storage drawer sealed from the cabinet keeps your necessities within arms reach, also includes an on-board fence and miter gauge storage.

• Style (Type): Cabinet
• Blade Diameter (In.): 10
• Arbor Diameter (In.): 5/8
• Arbor Speed (RPM): 4300
• Maximum Depth of Cut (In.): 3
• Maximum Depth of Cut at 45 Degrees (In.): 2-1/8
• Maximum Rip Left of Blade (In.): 13
• Maximum Rip Right of Blade (In.): 30
• Table in Front of Saw Blade at Maximum Depth of Cut (In.): 10
• Maximum Diameter of Dado (In.): 8
• Maximum Width of Dado (In.): 13/16
• Table Type: Cast Iron
• Table Size (L x W) (In.): 29 x 20
• Table Size with Extension (L x W) (In.): 29 x 42
• Miter Gauge Type: Deluxe
• Dust Collection Minimum CFM Required (CFM): 350
• Dust Port Outside Diameter (In.): 4
• Motor Power (HP): 5
• Motor Phase (PH): 1
• Motor Voltage (V.): 230
• Prewired Voltage (V.): 230
• Motor Amps: 18
• Height: 38.0000
• Length: 65.0000
• Weight: 490.0000
• Width: 36.0000
