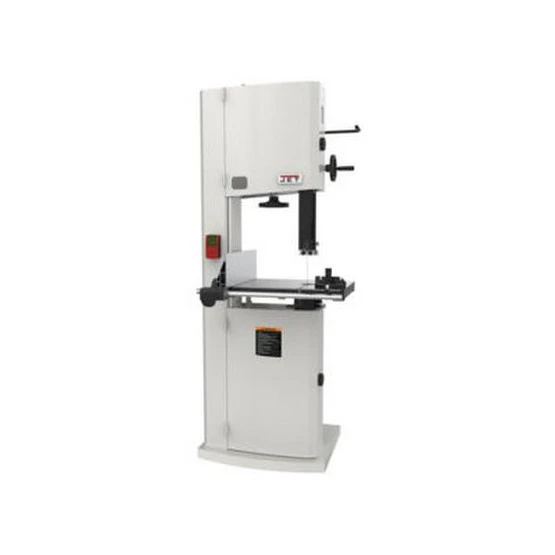

Jet 714600 Jwbs-15, 15″ Bandsaw 1.75hp

• 14″ Resaw capacity for cutting large pieces of wood, slicing veneers and cutting book matched panels
• 21-1/2″ x 16″ precision ground cast iron table for added stability and work support
• Fence system features a micro-adjustable, dual-position side plate
• Tool-less, independently adjustable, upper and lower ball bearing guides
• Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
• Easy-to-read blade tension scale can be viewed through upper door window
• Single knob adjustment simplifies the blade tracking process
• Blade tracking window provides clear view of blade during tracking
• Heavy duty tensioning with quick release features three settings: full tension, partial tension and full release
• Cast iron trunnion for maximum support and stability
• Slotted table allows for front blade removal
• Cast iron handwheels and ergonomically designed knobs make adjustments smooth and easy
• Round table insert features leveling screws for precise adjustment
• Conveniently located dual 4″ dust collection ports catch dust and chips at the source
• Table tilts 5° left and 45° right to accommodate a wide variety of cuts

Designed to perform, the JET 15 bandsaw delivers more re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up. The JET 15 steel frame bandsaw is engineered to build great projects through superior performance.

• Band Saw Size/Wheel Diameter (In.): 14-3/4
• Cutting Capacity Width (In.): 14-1/8
• Cutting Capacity Height (In.): 14
• Blade Length (In.): 133
• Blade Speed (SFPM): 3100
• Table Size (L x W) (In.): 21-1/2 x 16 x 2
• Blade Width (In.): 1/2″, 6TPI
• Maximum Saw Blade Width (In.): 1
• Minimum Saw Blade Width (In.): 1/8
• Table Height from Floor (In.): 35
• Table Tilt (Deg.): -5,45
• Dust Collection Minimum CFM Required (CFM): 400
• Dust Port Outside Diameter (In.): 4 (x2)
• Motor Power (HP): 1-3/4
• Motor Phase (PH): 1
• Motor Voltage (V): 115/230
• Prewired Voltage (V): 115
• Motor Amps: 15/7.5
• Recommended Circuit Size (Amps.): 20
• Height: 79.5000
• Length: 29.9000
• Weight: 446.0000
• Width: 24.6000
