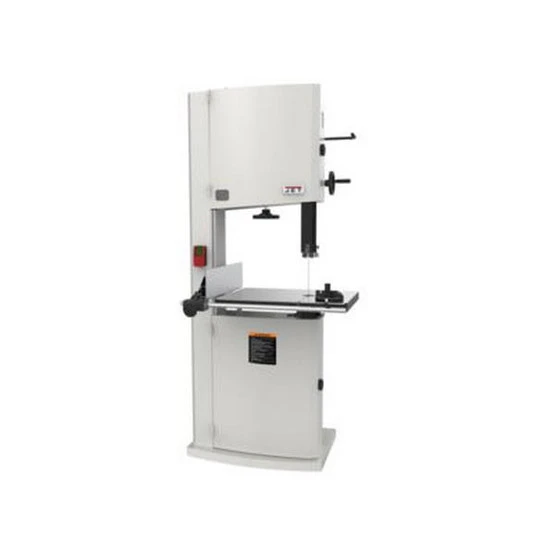

Jet 714800 Jwbs-20-3, 20″ Bandsaw, 3hp, 230v

• 16″ Resaw capacity for cutting large pieces of wood, slicing veneers and cutting book matched panels
• 27-1/4″ x 20″ precision ground cast iron table for added stability and work support
• Fence system features a micro-adjustable, dual-position side plate
• Tool-less, independently adjustable, upper and lower ball bearing guides
• Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
• Easy-to-read blade tension scale can be viewed through upper door window
• Single knob adjustment simplifies the blade tracking process
• Blade tracking window provides clear view of blade during tracking
• Heavy duty tensioning with quick release features three settings: full tension, partial tension and full release
• Cast iron trunnion for maximum support and stability
• Slotted table allows for front blade removal
• Cast iron handwheels and ergonomically designed knobs make adjustments smooth and easy
• Round table insert features leveling screws for precise adjustment
• Conveniently located dual 4″ dust collection ports catch dust and chips at the source
• Table tilts 5° left and 45° right to accommodate a wide variety of cuts

Designed to perform, the JET 20 bandsaw delivers more re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up. The JET 20 steel frame bandsaw is engineered to build great projects through superior performance.

• Band Saw Size/Wheel Diameter (In.): 20-1/4
• Cutting Capacity Width (In.): 20
• Cutting Capacity Height (In.): 16
• Blade Length (In.): 158
• Blade Speed (SFPM): 2530/4850
• Table Size (L x W) (In.): 27-1/4 x 20 x 1-5/8
• Blade Width (In.): 1″ x 3TPI
• Maximum Saw Blade Width (In.): 1-1/2
• Minimum Saw Blade Width (In.): 1/8
• Table Height from Floor (In.): 37
• Table Tilt (Deg.): -5,45
• Dust Collection Minimum CFM Required (CFM): 400
• Dust Port Outside Diameter (In.): 4 (x2)
• Motor Power (HP): 3
• Motor Phase (PH): 1
• Motor Voltage (V): 230 only
• Motor Amps: 12
• Recommended Circuit Size (Amps.): 30
• Height: 88.2000
• Length: 32.6000
• Weight: 660.0000
• Width: 26.2000
