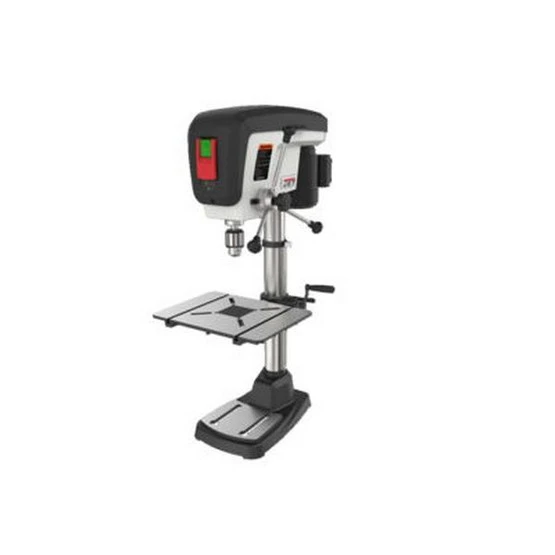

Jet 716200 JDP-15B 15″ Benchtop Drill Press

• Spindle travels a full 3-1/8” with one revolution of the handle
• Large 12-1/2″ x 17″ precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project
• One-handed belt tensioning allows for rapid speed changes
• Power switch features a safety key and large, paddle-style off button
• Integrated depth stop makes repetitive drilling quick and easy
• Xacta-X laser system easily identifies the drill center
• Long-lasting, built-in LED work light reduces shadows
• Table edge lip designed to make clamping easy
• Replaceable MDF table insert
• Large cast iron base provides stability
• Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system
• CSA Certified

AVAILABLE MAY 2016 – the new JET JDP-15B, 15 Benchtop Drill Press. From a full 3-1/8 of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a one-handed belt-tensioning system and a large 12-1/2″ x 17″ work table.

• Style (Type): Benchtop
• Swing (In.): 15
• Spindle Travel (In.): 3-1/8
• Number of Spindle Speeds: 16
• Spindle Taper: MT2/JT3
• Spindle Speed Range (RPM): 210 – 3500
• Spindle Distance to Table (Max.) (In.): 18-5/16
• Table Size (L x W) (In.): 12-1/2 x 17
• Table Tilt (Deg.): 45 Left and Right
• Chuck Size (In.): 5/8
• Column Diameter (In.): 2-3/4
• Base Size (In.): 18 x 11-3/8
• Motor Power (HP): 3/4
• Motor Phase (PH): 1
• Motor Voltage (V): 115
• Prewired Voltage (V): 115 only
• Motor Amps: 9
• Weight (Lbs.): 154
• Height: 12.8100
• Length: 36.5000
• Weight: 165.5000
• Width: 33.2500
