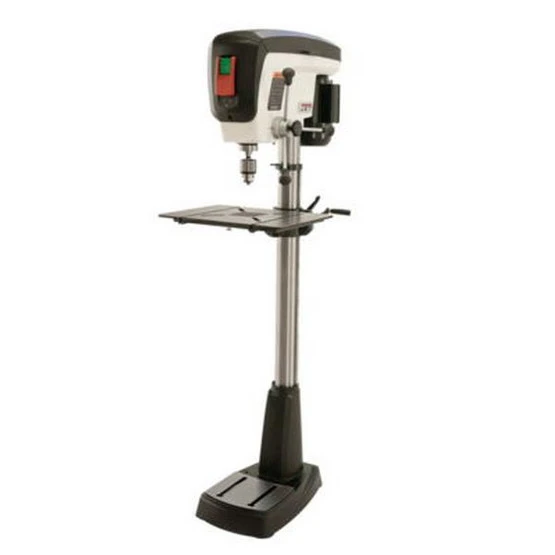

Jet 716300 17″ Drill Press

• Spindle travels a full 5” with one revolution of the handle
• Large 14″ x 19″ precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project
• One-handed belt tensioning allows for rapid speed changes
• Power switch features a safety key and large, paddle-style off button
• Integrated depth stop makes repetitive drilling quick and easy
• Xacta-X laser system easily identifies the drill center
• Long-lasting, built-in LED work light reduces shadows
• Table edge lip designed to make clamping easy
• Replaceable MDF table insert
• Large cast iron base provides stability
• Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system
• CSA Certified

Introducing the new JET JDP-17, 17 Drill Press. From a full 5 of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. A large 14″ x 19″ work table provides plenty of support with an edge designed for easy clamping.

• Style (Type): Floorstanding Model
• Swing (In.): 16-7/8
• Spindle Travel (In.): 5
• Number of Spindle Speeds: 16
• Spindle Speed Range (RPM): 210 – 3500
• Spindle Distance to Table (Max.) (In.): 30
• Table Size (L x W) (In.): 14 x 19
• Table Tilt (Deg.): 90 Left and Right
• Chuck Distance to Base (In.): 42-7/8
• Chuck Distance to Table (In.): 25-7/8
• Chuck Size (In.): 5/8
• Column Diameter (In.): 3-5/32
• Base Size (In.): 20 x 12-5/8
• Motor Power (HP): 3/4
• Motor Phase (PH): 1
• Motor Amps: 9
• Recommended Circuit Size (Amps.): 15
• Weight (Lbs.): 187
• Height: 11.5000
• Length: 56.0000
• Weight: 198.0000
• Width: 23.5000
