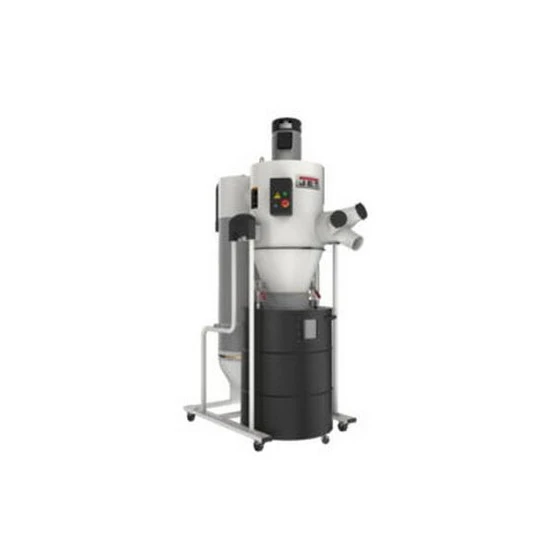

Jet 717530K Jcdc-3 Cyclone Dust Collector Kit, 3hp, 230v

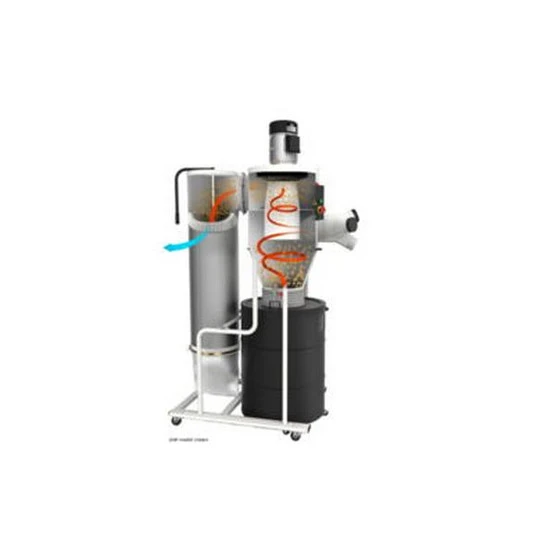

• The cyclone’s two stage separation provides more working CFM than comparable horsepower single stage units
• Heavy debris is pulled down to collection drum before debris stream reaches the filter, providing constant suction
• Direct mounted filter eliminates inefficiencies from ridged flex hosing and bends
• Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below

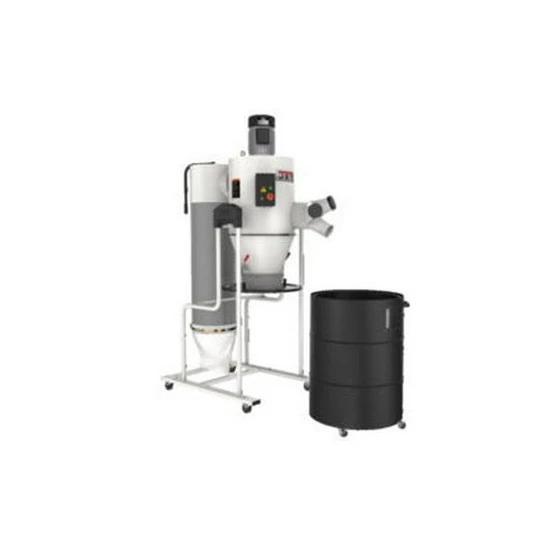

• Heavy debris is captured in a 66 gallon drum with quick release levers and independent casters for quick emptying
• Included radio frequency remote control works from up to 50 feet away
• Remote timer settings allows system to run for 2, 4, 6, or 8 hours before automatic shutoff
• Double paddle manual cleaning system quickly cleans the pleated filter
• Swivel casters make it easy to move the unit around the shop

Are you ready to get more from your dust collector? The Cyclone Dust Collector Collection from JET delivers the efficiency youve been waiting for. With a direct mount filter, a radio frequency remote control and a large collection bin these dust collectors take your shops capabilities to a new level. Upgrade to a JET Cyclone Dust Collector and experience The Power of Efficiency.

• Number of Air Inlets: 1 at 8″, 3 at 4″
• 1-Hose Connection Diameter (In.): 8
• 3-Hoses Connection Diameter (In.): 4
• Air Flow (US Method) @ 8″ (CFM): 1,240 (2,102 m/hr)
• Air Flow (EU Method) @ 8″ (CFM): 1,963 (3,327 m/hr)
• Air Velocity (US Method) @ 8″ (FPM): 3,542 (18.0 m/s)
• Air Velocity (EU Method) @ 8″ (FPM): 5,609 (28.5 m/s)
• Static Pressure Loss (US Method) (Wc.): 1.260
• Static Pressure Loss (EU Method) (Wc.): 2.047
• Max. Static Pressure (Wc.): 8.976
• MERV Value: 13
• Filter Efficiency (Micron): 1
• Efficiency (Micron): 99% of 2 micron particles
• Canister Filter Length (In.): 38-3/8
• Canister Filter Diameter (In.): 14-9/16
• Canister Collection Bag (Dia. x L/In.): 23-5/8 x 19-11/16
• Collection Drum Capacity (gal.): 66
• Drum Collection Bag (Dia. x L/In.): 38-9/16 x 47-1/4
• Impeller Material: Steel
• Impeller Diameter (In.): 15
• Impeller Fins: Radial
• Sound Rating (Db.): 76
• Motor Speed (RPM): 3,450
• Motor Power (HP): 3
• Motor Phase (PH): 1
• Motor Voltage (V.): 230
• Prewired Voltage (V.): 230
• Motor Amps: 13
• Recommended Circuit Size (Amps.): 20A
• Footprint (L x W/In.): 57 x 30-7/16
• Assembled Dimensions (L x W x H/In.): 30-7/16 x 57 x 88
• Height: 38.5600
• Length: 54.7000
• Weight: 301.0000
• Width: 30.1300
