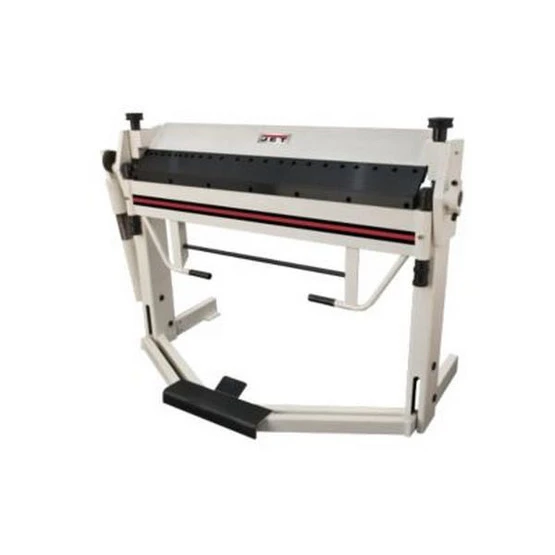

Jet 752125 Bpf-1240, 40″ X 12 Gauge Box & Pan Brake With Foot Clamp

• Wide Assortment of Finger widths allow greater versatilty in the shop
• Black Ceramic Coated Fingers prevent rust and ensure longer finger life
• All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
• Stop rod for repeatable bending
• Material clamping is foot operated to save strain on back and arms
• Air spring to assist in raising the clamping handle

Precision and durability with innovative ergonomic features ensures ongoing accuracy and operation, without user fatigue.

• Style (Type): Floor Box and Pan
• Mild Steel Capacity (Gauge): 12
• Bending Length Capacity (In.): 40
• Maximum Box Depth (In.): 2-1/2
• Maximum Lift of Beam (In.): 1-7/8
• Number and Width of Fingers (In.): 1 ea 1, 1-1/8, 1-3/8, 1-1/2, 1-3/4, 2, 3, 4, 6, 7-3/4, 10-5/8
• Finger Nose Angle (Deg.): 42
• Nose Radius (In.): 1/32
• Overall Dimensions (L x W x H) (In.): 58 x 25 x 50
• Weight (Lbs.): 705
• Height: 50.0000
• Length: 58.0000
• Weight: 705.0000
• Width: 25.0000
