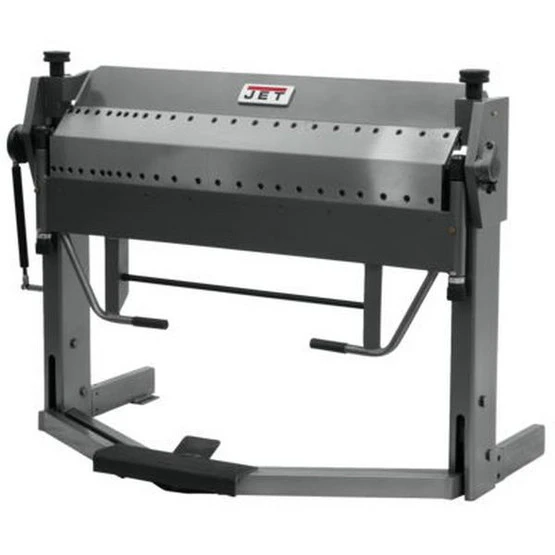

Jet 752130 Pbf-1640d 16gax50 Dual Sided Box & Pan Brake With Foot Clamp

• All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
• Hardened and ground fingers
• Rubber stops on rear of lower arm to prevent contact with support frame
• Non-skid foot pedal
• Set lower beam parallelism more accurately with graduated scale on each side
• Removable upper fingers and on the apron for greater versatility in making custom bends
• Repeat bends are easy with a quick turn of the stop collar on the stop rod
• Hydraulic spring to assist in raising the apron reduces strain on the operator
• Large easy to use foot clamp allows the operator hands free clamping

Achieve bending precision and versatility along with rugged durability. The dual-sided box and pan brake adapts to a wide range of applications. Easily add and remove upper and lower fingers for multiple bends. The JET-exclusive graduated scale on each side improves accuracy when setting lower beam parallelism.

• Mild Steel Capacity (Gauge): 16
• Bending Length Capacity (In.): 50
• Maximum Box Depth (In.): 2-1/2
• Number and Width of Fingers (In.): 1 ea @ 1, 1-1/8, 1-3/8, 1-1/2, 1-3/4, 2, 3, 4, 6, 7-3/4, 10, 10-5/8
• Finger Nose Angle (Deg.): 45
• Nose Radius (In.): N/A
• Overall Dimensions (L x W x H) (In.): 67-3/8 x 28 x 51-1/2
• Weight (Lbs.): 849
• Max. Clamping Bar Lift: 1.81
• Height: 51.5000
• Length: 67.3800
• Weight: 849.0000
• Width: 28.0000
