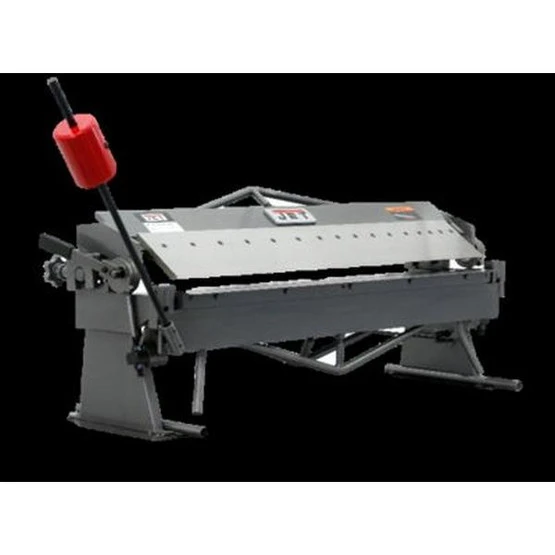

Jet 754105 Bpb-1650, 50″ X 16 Gauge Bench Model Box & Pan Brake

• Incorporates all the features of our standard hand brakes but with greater range of applications
• With fingers installed it can be used as a full-length nose bar, turning the machine into a straight bending brake
• Stop rod for repeatable bending
• Sectioned fingers are easily removed for box bending and special forming operations
• Total of 16 assorted size section fingers

Box and Pan Brakes from JET are perfect for the larger, high volume shop that requires versatility yet demands rugged durability and bending precision

• Style (Type): Bench Box and Pan Brake
• Mild Steel Capacity (Gauge): 16
• Bending Length Capacity (In.): 50
• Maximum Box Depth (In.): 4
• Maximum Lift of Beam (In.): 1-1/4
• Beam Adjustment (Front to Rear) (In.): 5/8
• Number and Width of Fingers (In.): 16 (4@2in, 6@3in, 6@4in)
• Finger Nose Angle (Deg.): 45
• Nose Radius (In.): 1/32
• Overall Dimensions (L x W x H) (In.): 66 x 23-1/4 x 32-1/4
• Weight (Lbs.): 448
• Height: 32.2500
• Length: 66.0000
• Weight: 550.0000
• Width: 23.2500
