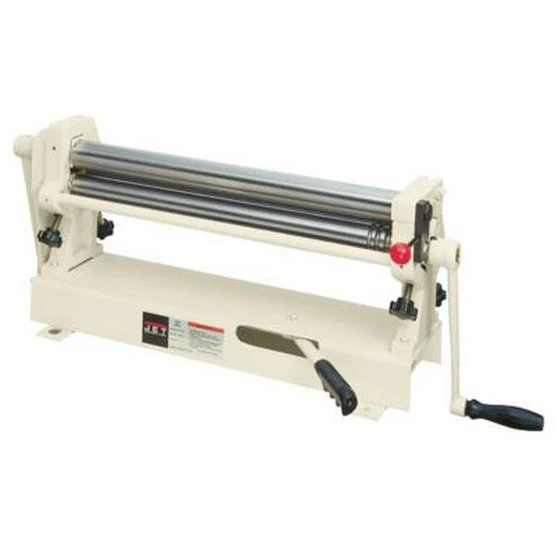

Jet 756026 Sr-2236m, 36″ X 22 Gauge Bench Model Slip Roll

• Perfect tool for sheet metal forming in HVAC and FAB-shops
• Suitable for many industrial, educational and vocational shop uses
• Precision turned carbon steel rolls that are ground and polished
• Large roll adjusting screws facilitate lifting upper roll for easy material removal
• Wire grooves are standard on SR-2024N, SR-2236N and SR-1650N

JET manual slip rolls have a forming width of 24, 36 & 50 with a capacity of 20, 22 & 16 gauge mild steel. These machines have two driven rolls of precision turned, ground and polished carbon steel. They are the perfect sheet metal forming machines to have in any general fabrication, school, racing or HVAC shop. The highly rigid construction frame ensures precision roll bending for decades of production. This sheet metal roller comes standard with three wire or rod grooves.

• Mild Steel Capacity (Gauge): 22
• Maximum Forming Length (In.): 36
• Number and Diameter of Rolls (In.): 3, 2
• Minimum Forming Radius (In.): 1
• Wire Grooves (In.): 3/16, 1/4, 5/16
• Overall Dimensions (L x W x H) (In.): 62 x 14 x 14
• Weight (Lbs.): 256
• Height: 18.0000
• Length: 47.2500
• Weight: 256.0000
• Width: 16.0000
