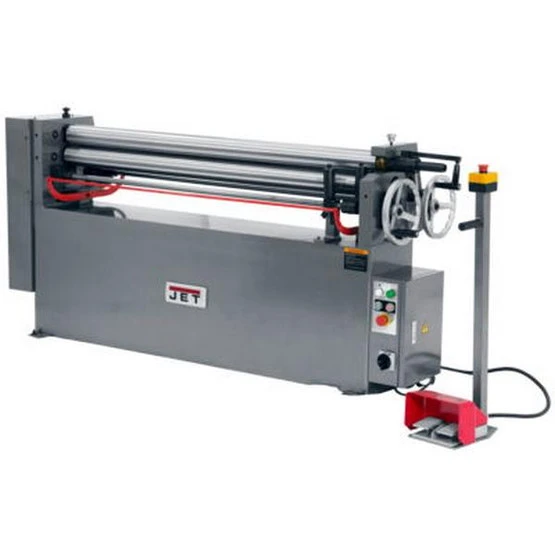

Jet 756030 Epr-1460-3 14ga X 60″ Electric Plate Roller

• Three-roll design with two drive rolls
• Rolls are made of hardened polished high carbon steel
• Heavy duty frame and base insure precise sheet metal rolling
• CSA/US: Following strict guidelines and electrical requirements, this JET Plate Roller is CSA/US certified
• Foot-control assembly with emergency-stop
• Integrated safety bar system along entire bending length permits quick stoppage of machine
• Forming roll has attached position scale for equal pressure adjustment
• Weight and rigidity; scale and precision; strength and simplicity define exceptional comfort and ease of operation
• Easy to use forward and reverse foot pedal
• Conical attachment for ease of rolling cones, tapers and conicals

The design employs three rolls with two drive rolls, made of precision turned, ground and polished carbon steel. JET Electric Plate Rollers combine weight, rigidity, strength, precision, and simplicity, for metal forming in any general fabrication, school, racing or HVAC shop.

• Mild Steel Capacity (Gauge): 14
• Maximum Forming Length (In.): 60
• Number and Diameter of Rolls (In.): 3 & 3-1/2
• Minimum Forming Radius (In.): 5-1/4
• Wire Grooves (In.): 3/8 x 1/2 x 5/8
• Prewired (V.): 230V
• Motor (HP): 2HP, 3-Phase
• Motor Voltage (V.): 230/460V,
• Weight (Lbs.): 1543
• Operating Positions: Vertical or Horizontal
• Height: 48.0000
• Length: 87.5000
• Weight: 1543.0000
• Width: 31.5000
