Brand
- MFR #JDP-20VS-1
- Zoro #G7685828
- UPC #731325503906
- Country of OriginTaiwan, Province of China
- Category
Dimensions
| Chuck Size | 5/8 in |
| Overall Height | 79 35/64 in |
| Base Size | 27 in x 19 in |
| Column Dia. | 4 1/2 in |
| Quill Dia. | 3 in |
| Overall Depth | 38 3/16 in |
| Table Slot Size | 5/8 in |
| Overall Width | 27 5/32 in |
| Table Width | 18 3/4 in |
| Table Slot Width | 5/8 in |
| Overall Length | 38 1/8 in |
| Base Length | 27 in |
| Table Length | 22 in |
| Quill Diameter | 2 61/64 in |
| Column Diameter | 4 1/2 in |
| Maximum Spindle-to-Table Height | 30 1/4 in |
| Base Width | 19 in |
| Maximum Spindle-to-Base Height | 44 1/2 in |
| Maximum Overall Height | 79 1/2 in |
Details
| Drill Press Product Grouping | Production Drill Presses |
| Item | Floor Drill Press |
| Drive Type | Belt |
| Swing | 20 in |
| Voltage | 115/230V AC |
Description

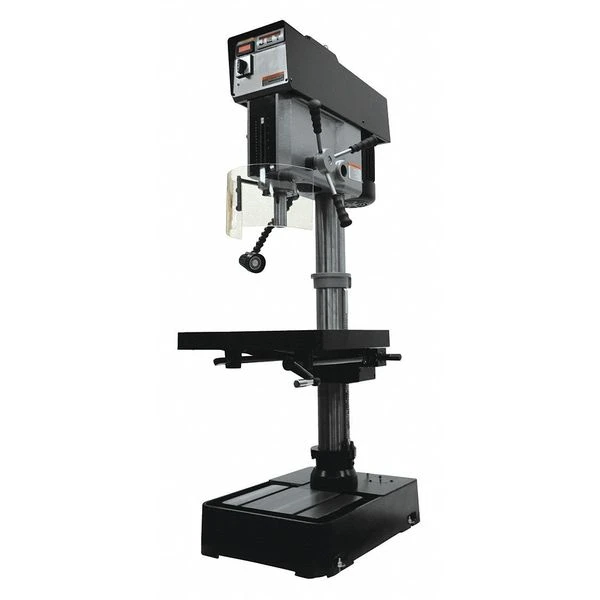

Floor Drill Press, Primary Material Application Metal, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Drilling, Speed Control Variable, Speed Adjustment Mechanical Variable Speed Drive System, Swing 20 in, Spindle-to-Column Distance 10 7/16 in, Horsepower 2 hp, Voltage 115/230V AC, Spindle Taper 3MT, Number of Speeds Variable, Chuck Size 5/8 in, Chuck Style Keyed, Guard Included Yes, Coolant System No, Quill Diameter 2 61/64 in, Drilling Capacity in Steel 1 in
