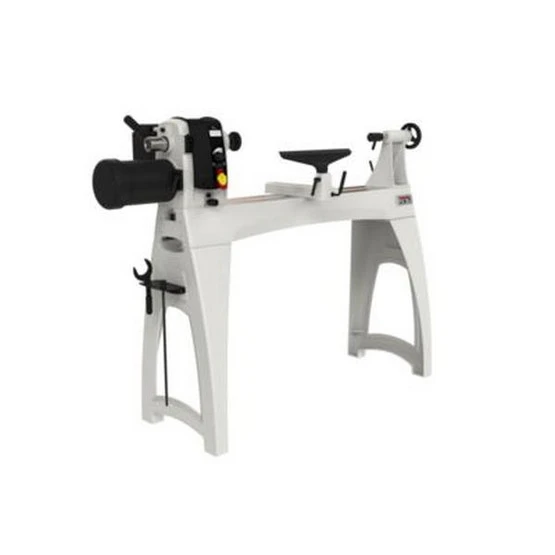

Jet Jwl-1640evs 16″ X 40″ Wood Lathe

• Headstock slides for maximum versatility
• Extended spindle nose houses dual headstock spindle bearings
• Improved tailstock quill locking mechanism incorporates an anti-rotation key
• Tailstock features Acme threads for smooth and durable movement
• Banjo uses non-marring, positive locking wedge system to securely hold tool post
• Tool post locking mechanism designed for year of consistent strength
• Spindle lock latch frees up both hands
• Electronic infinitely variable speed from 40 – 3200 RPM
• 36 integrated indexing positions
• Newly designed headstock locking handle accessible from front of lathe
• Convenient leg-mounted tool holder
• Inverter is enclosed for added protection
• E Drive Inverter features a built in EMI filter
• Conveniently located digital readout
• Rubber tool mat on top of headstock

The new JET 16 x 40 Electronic Variable Speed Woodworking Lathe is loaded with cutting-edge features that distinguish it from others in its class. Included is a sliding headstock that also pivots 360 degrees, electronic infinitely variable speed from 40 3200 RPM, and a newly designed headstock locking handle.

• Swing Over Bed (In.): 16-1/2
• Swing Over Tool Rest Base (In.): 12-7/8
• Distance Between Centers (In.): 40
• Headstock Movement: Slide & Rotate
• Spindle Bore (In.): 5/8
• Tailstock Bore (In.): 3/8
• Spindle Taper: MT2
• Quill Taper: MT2
• Quill Travel (In.): 4-1/4
• Spindle Thread (In./TPI): 1-1/4″/8 TPI
• Outboard External Threads (In. x TPI): 3/4-14 LH
• Spindle Speeds: High 120-3200/Low 40-1200
• Speed Range: 40-3200
• Number of Indexing Positions: 36
• Centerline of Spindle to Floor (In.): 44-1/2
• Outboard Turning: Yes
• Bed Construction: Cast Iron
• Motor Power (HP): 1-1/2
• Motor Phase (PH): 3
• Motor Voltage (V.): 230
• Prewired Voltage (V.): 115 Input Only
• Wiring Remarks: 115v input only
• Motor Amps: 4.6
• Recommended Circuit Size (Amps.): 20
• Height: 28.0000
• Length: 57.0000
• Weight: 440.0000
• Width: 31.0000
