Brand
- MFR #350020
- Zoro #G3498787
- UPC #731325503760
- Country of OriginTaiwan, Province of China
- Category
Dimensions
| Chuck Size | 1/2 in |
| Quill Dia. | 3 in |
| Column Dia. | 4-1/2 in |
| T-Slot Width | 5/8 in |
Details
| Swing | 15 7/8 in |
| Voltage | 120/240V |
| RPM | 150 to 3000 |
| Item | Mill Drill Machine |
| Drilling Capacity Steel | 1 1/4 in |
| Spindle Speed | 150 to 3000 rpm |
| Face Milling Capacity | 3 in |
| Motor HP | 2 |
| Phase | 1 |
| Longitudinal Travel | 20 1/2 in |
| Cross Travel | 6 1/2 in |
| Amps | 26.0/13.0 |
| End Milling Capacity | 3/4 in |
| Milling and Drilling Machine Product Grouping | Mill/Drill Machines |
| Includes | Power Downfeed, Angle Vise |
| Features | Follows Strict Guidelines and Electrical Requirements to be Certified by CSA Group, Belt Cover with Quick Slide Latch, Base Taper, UL Listed Motor |
| Spindle to Table | 18 in |
| Operation | Manual |
| Corded/Cordless | Corded |
| T-Slots | 5/8″ |
Description

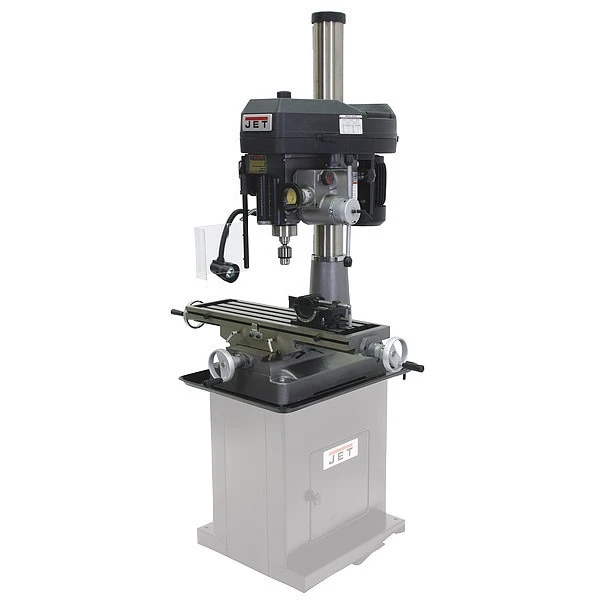

Mill Drill Machine, Phase 1, Swing 15 7/8 in
