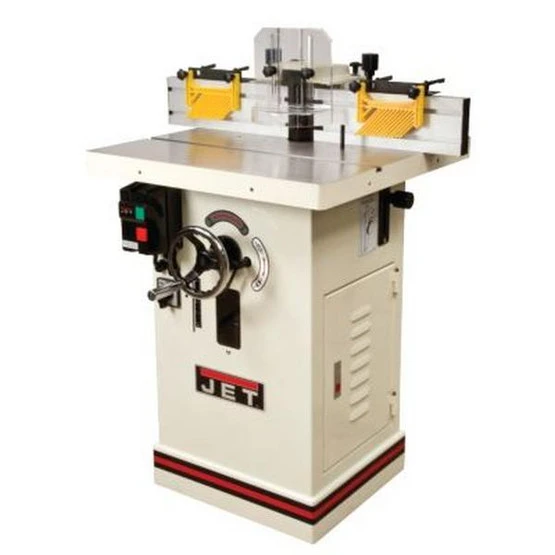

Jet Shaper 708309 Jws-25x, 3hp, 1ph

• Two-speeds let you select the best speed and torque for different cutter diameters
• Independently adjustable left and right fences, standard with a micro adjust control for precise positioning
• Large 25” X 25-1/2” precision ground cast iron table provides a durable work area
• V-belt transfers maximum power to the spindle
• Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
• Reversible spindle speeds for diverse shaping jobs
• Powerful 3HP, 1Ph motor with magnetic controls
• Starting pins for irregular shaping
• Extra large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
• 4” Dust port built into fence for convenient hookup to any dust collection system
• Spindle lock for safe and easy cutter set up
• Spindle height scale

The new model JWS-25X Shaper features a powerful 3HP motor with magnetic controls. The large 25x 25-1/2 precision ground cast iron table provides plenty of support. Safe, easy cutter set up is assisted by a positive detent spindle lock. The independently adjustable left and right fence has a built in 4 dust port.

• Spindle Speed (RPM): 7500/10000
• Maximum Spindle Diameter (In.): 1/2, 3/4
• Spindles Included: No
• Spindle Size Under Nut (In.): 2-13/64, 3-3/16
• Spindle Travel (In.): 3-1/2
• Reversible: Yes
• Maximum Diameter Cutter Above Table (In.): 7
• Maximum Diameter Cutter Below Table (In.): 6
• Table Opening Diameter (In.): 6-9/32
• Table Inserts (In.): 2
• Table Insert Opening Diameter (In.): 2-9/16, 4-21/64
• Table Size (L x W) (In.): 25-1/2 x 25
• Table T-Slot (In.): 3/4 x 3/8
• Table Height from Floor (In.): 33
• Fence Size (L x H) (In.): 14-1/2 x 4-3/4
• Fence Travel (Major and Minor) (In.): 4-1/4, 15/16
• Dust Port Outside Diameter (In.): 4
• Dust Collection Minimum CFM Required (CFM): 600
• Electrical Controls: Yes
• Motor Power (HP): 3
• Motor Phase (PH): 1
• Motor Voltage (V.): 230
• Prewired Voltage (V.): 230
• Motor Amps: 16
• Height: 23.0000
• Length: 43.0000
• Weight: 381.0000
• Width: 25.0000
